Arden Photonics MPX-1A Encircled Flux Meter for Multimode Fiber Testing

MPX-1A

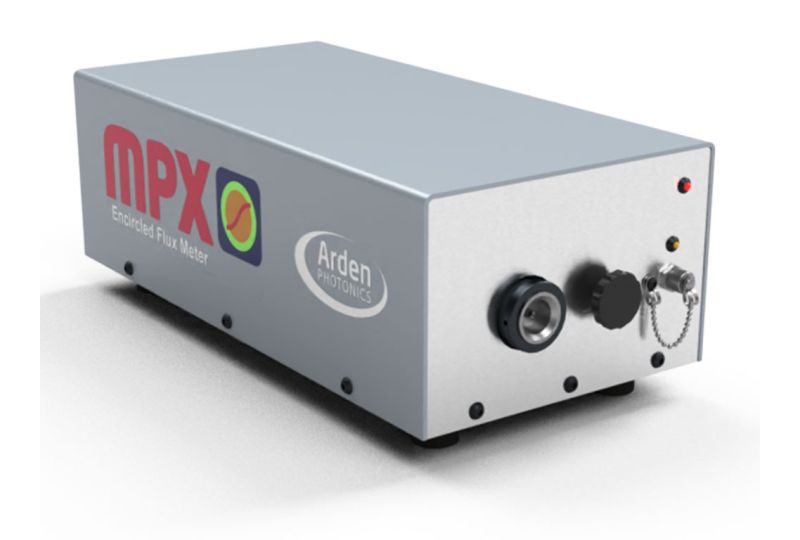

Arden Photonics MPX-1A Encircled Flux Meter for real-time, semi-automated measurement of encircled flux at 850 nm.

Includes MPX optical unit, 10 dB and 20 dB filters, MPX-CK cable kit, MPX-SFT software package, MPX-PC 1.5 m patch cord, MPX-CAU250 universal 2.5 mm ferrule insert, and MPX1A-CC rigid carry case.

The Arden Photonics MPX-1A Encircled Flux Meter provides real-time, semi-automated measurement of encircled flux at 850 nm for evaluating multimode fiber optic network solutions and verifying compliance with industry standards. Designed for repeatability and ease of use, the MPX-1A helps ensure accurate characterization of modal launch conditions for fiber optic testing applications.

Simply connect your source and patch cord, and the system automatically measures modal launch conditions in real time. Advanced CMOS imaging technology enables fast, accurate measurements, while integrated auto-focus and auto-exposure functions provide consistent, repeatable results with minimal operator intervention.

Features for MPX-1A

Automatic focus and exposure for consistent, repeatable measurements
Fast, accurate measurements using CMOS imaging technology
Real-time encircled flux measurement
Compliant with TIA-526-14-A, IEC 61280-4-1, TIA/EIA-455-203, IEC 61280-1-4, and IEEE 802.3 standards

Applications for Encircled Flux Meter

Source and patchcord characterization for IEC 11801 and TIA/EIA-568 LAN testing
VCSEL characterization for Gigabit Ethernet applications in IEEE 802.3 networks
Mode scrambler and mode filter characterization
Source measurement to IEC 61280-4-1 requirements
Alignment of pigtailed light sources

Key Specifications for MPX-1A

Measurement Time: Real-time
Maximum Core Diameter: 110 µm
Encircled Flux Measurement Range: 400–1,100 nm
Sensor Wavelength: 850 nm
Image Sensor: CMOS array with 3.45 µm square pixels
Dynamic Range: 73 dB
Built-In Reference Source: 850 nm LED, FC connector, over-filled (110 µm core diameter; 0.37 N.A.)
End Face Inspection & Focusing: 850 nm LED
Input Connector Compatibility: Universal 2.5 mm ferrule, LC, FC, ST, SC, MTP, and bare fiber
Source Power Range: Approx. -40 to 10 dBm (depends on power density, fiber type, etc.)
Automatic Focus & Exposure: Integrated for consistent, user-independent measurements
Operating System Support: Windows 10/11, 64-bit

Accessories Included

MPX optical unit
MPX-CK cable kit
MPX-SFT software package
MPX-PC 1.5 m patch cord
MPX-CAU250 universal 2.5 mm ferrule insert
MPX1A-CC rigid carry case
One 10 dB filter and one 20 dB filter
