3M™ 263X Aluminum Oxide Lapping Film Disc - 5 inch 0.05µm (micron)

3M™ 263X Aluminum Oxide Lapping Film is recommended when diamond film is not needed, like in many multimode applications. Some aluminum oxides can even be used as the final polish. The 0.5µm and 0.3µm will produce return losses of -50 dB or better, but because they cut the glass at a much quicker rate than the ceramic, undercut may occur.

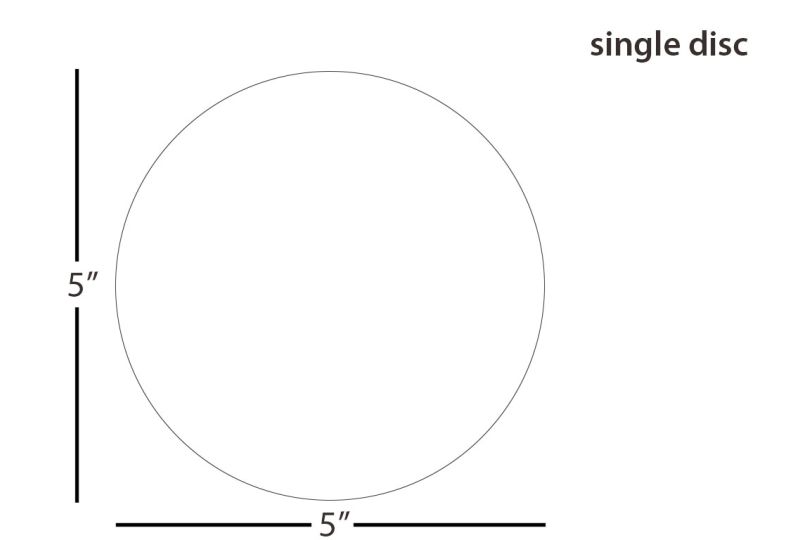

The 5" disc is used for applications in fiber optic connector polishing, flat lapping, superfinishing and media head finishing.

Lapping Film Features:

• Film Color: White
• Grit Size: 0.05 Micron (0.05µm)
• Base Film Material: Polyester
• Base Film Thickness: 3 mil (75 µm)
• Quantity: Single disc
• Non-PSA backed film
• Bonding Resins: Hard (Type P)

Product Life: 5 years from the date of manufacture when stored in the original packaging materials and stored at 10°C - 30° C (50°F - 86°F) and 30-60% relative humidity.
