3M™ 298X Aluminum Oxide Lapping Film Disc - 5 inch 0.5µm (micron), PSA

3M™ 298X Aluminum Oxide Lapping Film is recommended when diamond film is not needed, like in many fiber optic multimode applications. Some aluminum oxides can even be used as the final polish. The 0.5µm and 0.3µm will produce return losses of -50 dB or better, but because they cut the glass at a much quicker rate than the ceramic, undercut may occur.

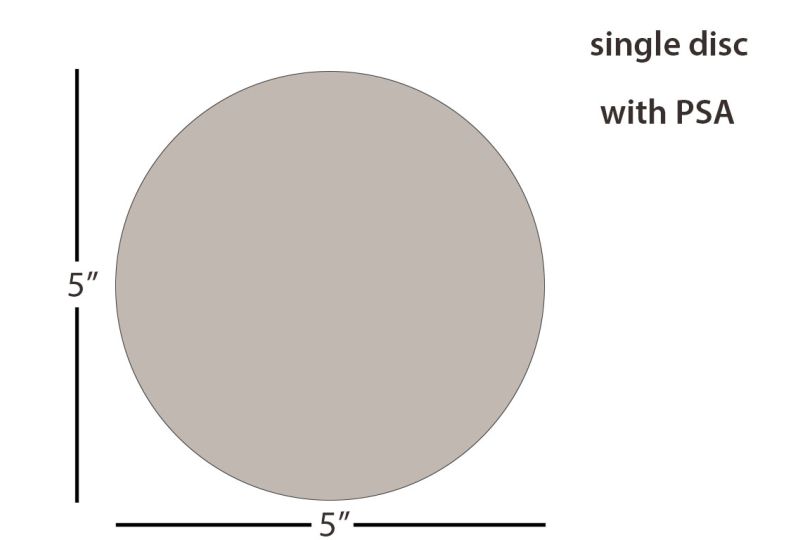

The 5" disc with PSA backing is used for applications in MT style, multi-fiber optic connector optic connector polishing and wafer edge cleaning.

Lapping Film Features:

• Film Color: Pink
• Grit Size: 0.5 micron (0.5µm)
• Base Film Material: Fibrous Polyester
• Quantity: Single Disc
• PSA backed film

Product Life: 24 months from the date of manufacture when stored in the original packaging materials and stored at 10°C - 30° C (50°F - 86°F) and 30-60% relative humidity.
