3M™ 498X Silicon Carbide Flock Pile Lapping Film Disc - 5 inch 3µm (micron), PSA

SC3-498X-503P

3M 3um 498X Silicon Carbide Flock Pile Lapping Film, 5" Disc with PSA Backing. Pricing per Disc.

3M™ 498X Silicon Carbide Flock Pile Lapping Film is a more aggressive abrasive material, often recommended over Aluminum Oxide Lapping Film for epoxy and glass removal. These films break down into a slurry during use with water for polishing MT style, multi-fiber ferrules. It enables better control of fiber protrusion and helps slurry mess and contamination on fixtures and polishing machines.

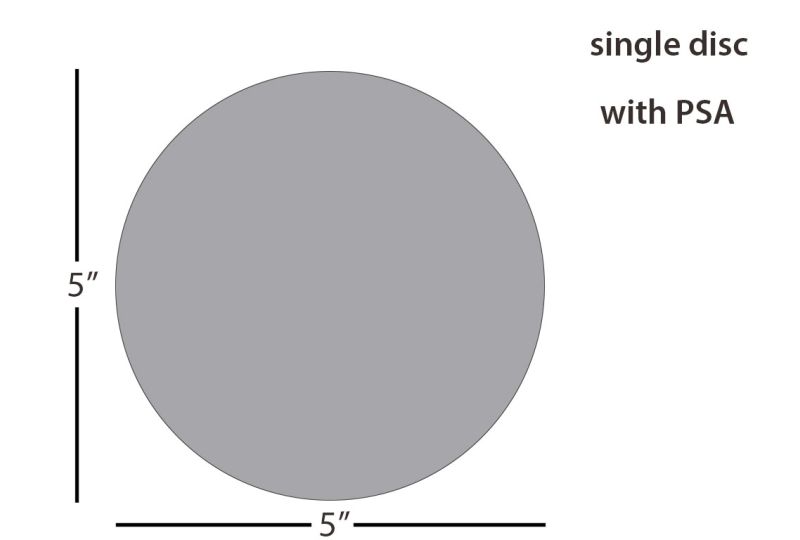

The 5" disc is used for applications in MT style, multi-fiber optic connector optic connector polishing and wafer edge cleaning.

Lapping Film Features:

Film Color: Gray
Grit Size: 3 micron (3µm)
Base Film Material: Fibrous polyester
Base Film Thickness: 3 mil (75 µm)
Quantity: Single Disc
PSA backed film

Product Life: 24 months from the date of manufacture when stored in the original packaging materials and stored at 10°C - 30° C (50°F - 86°F) and 30-60% relative humidity.

Datasheet

3M™ 498X Silicon Carbide Flock Pile Lapping Film Disc - 5 inch 3µm (micron), PSA - Datasheet
