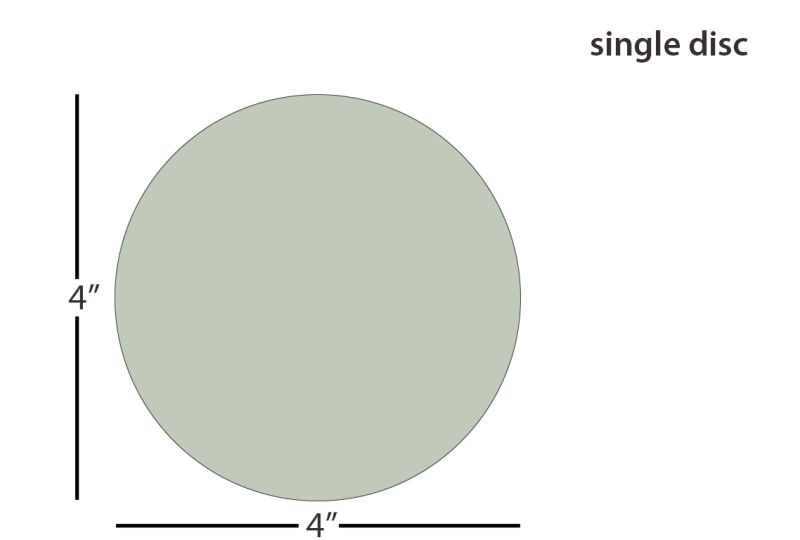

3M™ 661X Diamond Lapping Film Disc - 4 inch 0.1µm (micron)

D01-661X-403N

3M 0.1um 661X Diamond Lapping Film, Green 4" Disc with 3 mil Backing. Pricing per Disc.

The 3M™ 661X Diamond Lapping Film is an abrasive film used for polishing the end-face of fiber optic connectors. It shapes the fiber geometries, like restoring or forming the Radius of Curvature and Apex Offset of the ferrule. 3M Diamond Lapping Film lasts longer than regular films and can remove materials faster for quicker polishing.

The 4" disc is used for applications in fiber optic connector processing, flat lapping, and superfinishing.

Lapping Film 3M Features:

Film Color: Green
Grit Size: 0.1 micron (0.1µm)
Base Film Material: Polyester
Particle Type: Diamond film
Base Film Thickness: 3 mil (75 µm)
Quantity: Single disc
Non-PSA backed film
Bonding Resins: Standard resin

The 3M 661X Diamond Lapping Film Sheet has a product life of 5 years. You should store it in its original packaging. The storage temperature should be between 10°C and 30°C (50°F - 86°F). The relative humidity should be 30-60%.

Datasheet

3M™ 661X Diamond Lapping Film Disc - 4 inch 0.1µm (micron) - Datasheet
