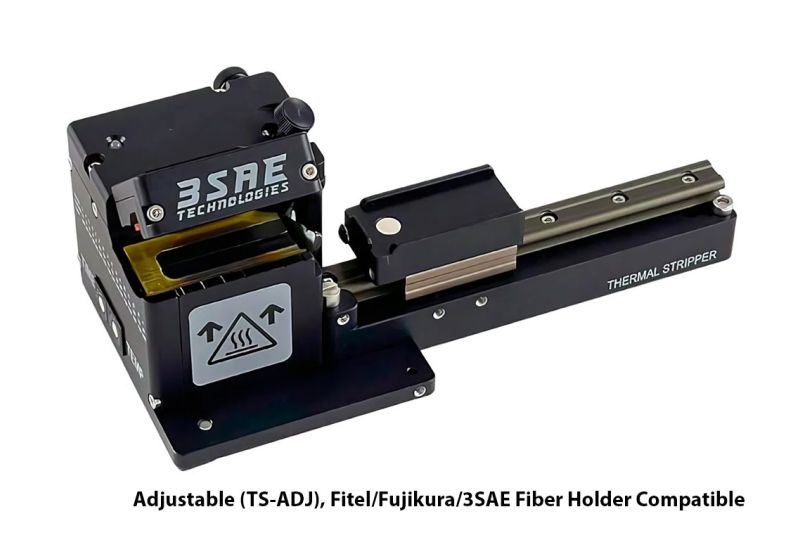

3SAE High Strength Thermal Stripper - Adjustable (TS-ADJ), Fitel/Fujikura/3SAE Fiber Holder Compatible

The 3SAE High Strength Adjustable Thermal Fiber Stripper is a compact, easy-to-use fiber optic stripping tool designed to heat and cleanly remove coatings from optical fibers. It supports cladding diameters from 30 µm to 1000 µm and buffer diameters up to 1200 µm, including standard 250 µm, 400 µm, and 900 µm fibers. With adjustable temperature and timing, it adapts easily to different coating types and fiber sizes.

This tool is configurable with 3SAE, FITEL, and Fujikura fiber holders. Using holders ensures a consistent, repeatable handling process across strip, clean, cleave, and splice equipment, supporting high-strength fusion splicing and improving overall yield.

Package includes:

• Fitel/Fujikura/3SAE Fiber Holder Compatible
• Power supply
• Cleaning brush
• Electronic user manual
• Manufacturer’s 1-year parts and labor warranty

Features:

• Compact, low-maintenance benchtop design
• Adjustable cladding range: 30–1000 µm, buffers up to 1200 µm
• Adjustable temperature: 140–392 °F and strip time for versatility
• Compatible with Fitel, Fujikura, and 3SAE fiber holder platforms
• Optional generic clamp for non-holder use
• Maximum strip length: 2.68" (68 mm)

Specifications:

• Dimensions: 6.2" (W) × 3.1" (D) × 2.9" (H) (158.5 × 78 × 74 mm)
• Weight: 0.98 lb (445 g)
• Power Input: 100–240 VAC, 50–60 Hz
• Power Output: 12 VDC, 3 A
• Supported Fibers: 50–1000 µm (0.002"–0.039") coated
• Supported Fiber Buffers: 80–1200 µm (0.003"–0.047")
