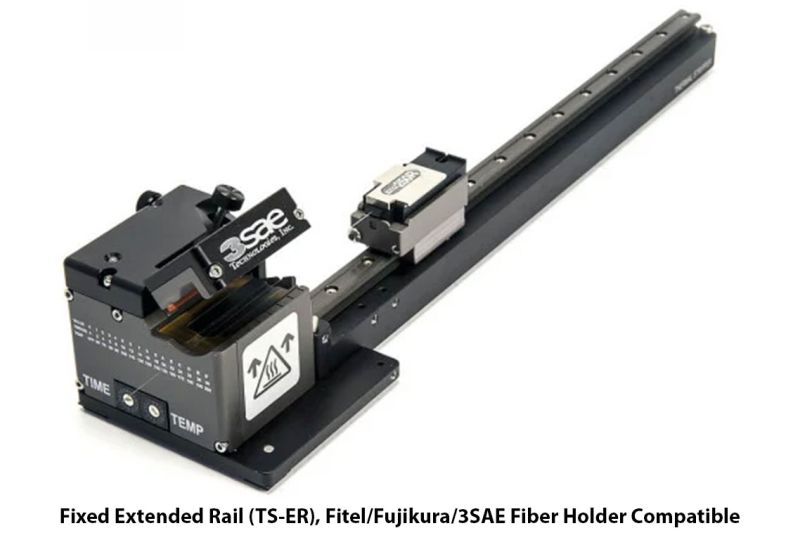

3SAE High Strength Thermal Stripper - Fixed Extended Rail (TS-ER), Fitel/Fujikura/3SAE Fiber Holder Compatible

The 3SAE Thermal Fiber Stripper Extended Rail model(TS-ER) is a compact, easy-to-use fiber optic stripping tool designed to heat and cleanly remove coatings from optical fibers. The extended rail provides additional travel, allowing users to strip longer sections of fiber coating for advanced applications.

The 3SAE High Strength Fixed Extended Rail model supports standard 125 µm optical fibers, including 250 µm, 400 µm, and 900 µm coated fibers. With an extended stroke of up to 8.9" (225 mm), it is ideal for stripping fibers used in optical gratings, couplers, and fiber optic combiners. Temperature and strip time are fully adjustable for compatibility with different coatings.

This tool is configurable with 3SAE, FITEL, and Fujikura fiber holders. Using holders ensures a consistent, repeatable handling process across strip, clean, cleave, and splice equipment, supporting high-strength fusion splicing and improving overall yield.

Package includes:

• Fitel/Fujikura/3SAE Fiber Holder Compatible
• Power supply
• Cleaning brush
• Electronic user manual
• Manufacturer’s 1-year parts and labor warranty

Features:

• Extended rail supports fiber strip lengths up to 8.9" (225 mm)
• Compact, low-maintenance benchtop design
• High Strength version supports 125 µm acrylate-coated fibers with buffer diameters up to 900 µm
• Adjustable temperature: 140–392 °F (60–200 °C) and strip time for different coatings
• Compatible platforms: Fitel, Fujikura, 3SAE, and Ericsson fiber holders
• Optional generic clamp is available for non-holder use

Specifications:

• Dimensions: 12.4" (W) × 3.1" (D) × 2.9" (H) (314 × 78 × 74 mm)
• Weight: 1.1 lb (500 g)
• Power Input: 100–240 VAC, 50–60 Hz
• Power Output: 12 VDC, 3 A
• Supported Fiber Types: 125 µm coated
• Supported Fiber Buffers: 250–900 µm
