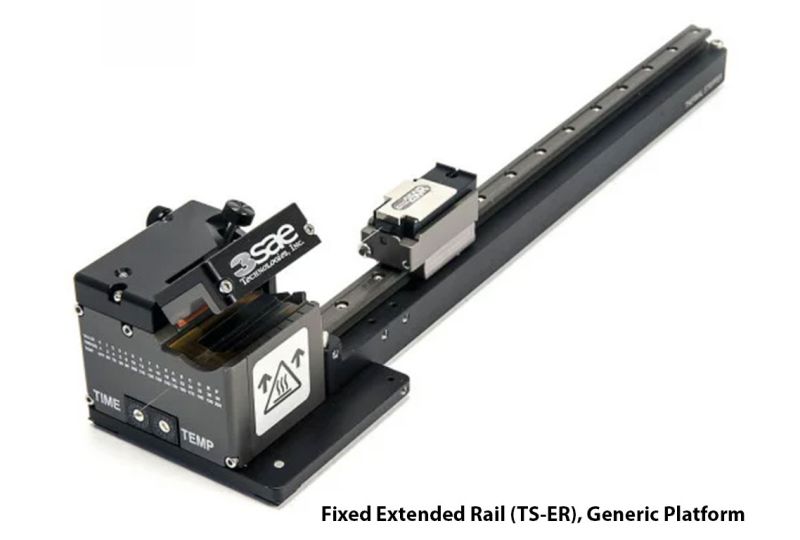

3SAE High Strength Thermal Stripper - Fixed Extended Rail (TS-ER), Generic Platform

The 3SAE Thermal Fiber Stripper Extended Rail model(TS-ER) is a compact, easy-to-use fiber optic stripping tool designed to heat and cleanly remove coatings from optical fibers. The extended rail provides additional travel, allowing users to strip longer sections of fiber coating for advanced applications.

The High Strength, Fixed Extended Rail model supports standard 125 µm optical fibers, including 250 µm, 400 µm, and 900 µm coated fibers. With an extended stroke of up to 8.9" (225 mm), it is ideal for stripping fibers used in optical gratings, couplers, and fiber optic combiners. Temperature and strip time are fully adjustable for compatibility with different coatings.

Package includes:

• Generic Platform (No Fiber Holder Required)
• Power supply
• Cleaning brush
• Electronic user manual
• Manufacturer’s 1-year parts and labor warranty

Features:

• Extended rail supports fiber strip lengths up to 8.9" (225 mm)
• Compact, low-maintenance benchtop design
• High Strength version supports 125 µm acrylate-coated fibers with buffer diameters up to 900 µm
• Adjustable temperature: 140–392 °F (60–200 °C) and strip time for different coatings
• Compatible platforms: Fitel, Fujikura, 3SAE, and Ericsson fiber holders (Part #: ACC-01-0027)
• Optional generic clamp available for non-holder use

Specifications:

• Dimensions: 12.4" (W) × 3.1" (D) × 2.9" (H) (314 × 78 × 74 mm)
• Weight: 1.1 lb (500 g)
• Power Input: 100–240 VAC, 50–60 Hz
• Power Output: 12 VDC, 3 A
• Supported Fiber Types: 125 µm coated
• Supported Fiber Buffers: 250–900 µm
