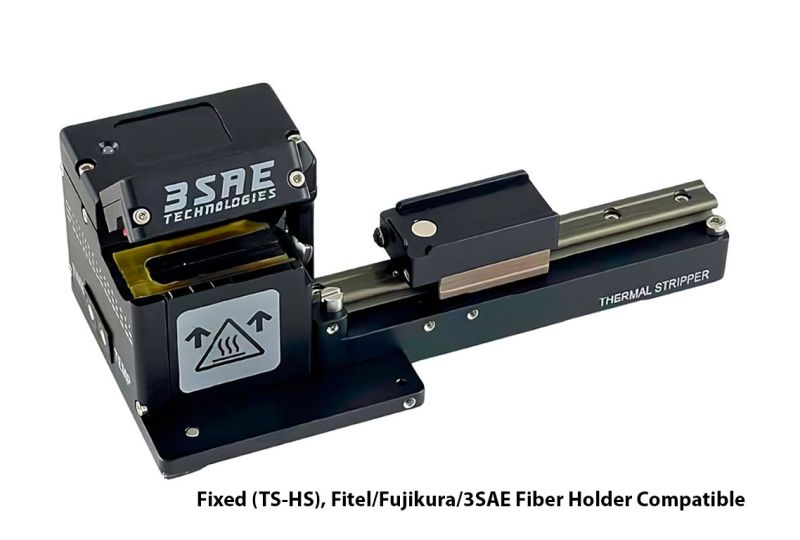

3SAE High Strength Thermal Stripper - Fixed (TS-HS), Fitel/Fujikura/3SAE Fiber Holder Compatible

The 3SAE Fiber Optic Thermal Stripper is a compact, easy-to-use unit designed to thermo-mechanically remove coatings from optical fibers. The Thermal Fiber Stripper High Strength (TS-HS) supports standard 125 μm optical fibers with 250 μm, 400 μm, and 900 μm coatings. Adjustable temperature and time settings allow it to handle a wide range of coating types. Its precision, self-centering blade design delivers high-strength stripping performance unmatched by traditional flat-blade strippers.

This tool is configurable with 3SAE, FITEL, and Fujikura fiber holders. Using holders ensures a consistent, repeatable handling process across strip, clean, cleave, and splice equipment, supporting high-strength fusion splicing and improving overall yield.

Package includes:

• Fitel/Fujikura/3SAE Fiber Holder Compatible
• Power supply
• Cleaning brush
• Electronic user manual
• Manufacturer’s 1-year parts and labor warranty

Features:

• Compact, low-maintenance benchtop design
• Supports 125 μm acrylate-coated fibers with buffer diameters up to 0.035" (900 μm)
• Adjustable temperature: 140–392 °F (60–200 °C) for versatile coating removal
• Compatible with Fitel, Fujikura, 3SAE, or Ericsson fiber holder platforms
• Maximum strip length: 2.68" (68 mm)

Specifications:

• Dimensions: 6.2" (W) × 2.9" (D) × 2.9" (H) (158.5 × 73.5 × 74 mm)
• Weight: 0.98 lb (445 g)
• Power Input: 100–240 VAC, 50–60 Hz
• Power Output: 12 VDC, 3 A
• Supported Fiber Types: 125 μm coated
• Supported Fiber Buffers: 250–900 μm
• Adjustable Temperature Range: 140–392 °F (60–200 °C), or ambient
