AFL 100R Fiber Optic Fusion Splicer Kit without Bluetooth - CT60 Fiber Cleaver & RS01 Thermal Fiber Stripper

The AFL 100R Mass Fusion Splicer is engineered to overcome the unique splicing challenges of rollable ribbon fiber in today’s high-density fiber networks. Featuring Intelligent Alignment Control, the 100R automatically corrects fiber seating, end-face gaps, and axis alignment across up to 16 fibers simultaneously to deliver consistently low, uniform splice loss. By reducing operator dependency and improving splice repeatability, the 100R helps ensure reliable, low-loss connections in demanding data center, hyperscale, metro, and long-haul network environments. This model does not come with bluetooth.

The CT60 Fiber Cleaver is designed to support both single and ribbon fibers, delivering consistent cleave quality with minimal maintenance and impressive blade life of up to 60,000 cleaves. The RS01 Thermal Fiber Stripper provides clean, precise fiber coating removal for both single- and multi-fiber applications while helping reduce the risk of fiber damage during preparation. Its fast 3-second heating time helps improve productivity in high-density ribbon splicing environments. When paired with the 100R Fiber Optic Splicer, these tools help optimize high-density ribbon fiber splicing operations.

Features of Fiber Optic Splicer:

• Intelligent Alignment Controls for hands-free, precise fiber alignment
• Auto Placement Correction for proper fiber seating in the V-groove
• Gap Alignment Correction for uniform endface gaps across all fibers
• Axis Offset Correction for consistent fiber alignment during fusion
• Automated wind protector, tube heater and splice operation
• User-replaceable V-grooves
• Graphical User Interface with 5.0" Touchscreen
• Multi-function transit case with integrated workstation

Applications for Fiber Splicer:

• Data Center and hyperscale fiber optic cable installation
• High fiber count metro and campus networks
• Long-haul network installations and repairs
• Trunk cable repair with Splice-on MPOs
• High-density ribbon splicing (including 200 µm loose fiber)

Specifications for 100R Splicer:

• Fiber Alignment Method: Self-Clad Alignment with Surface Melting Tension
• Fiber Capacity: Single fiber up to 16-fiber ribbon
• Applicable Fiber: Single-mode and multimode fiber (125 µm cladding)
• Splice Time (Single-Mode Fast Mode): Avg 16 to 18 Seconds
• Splice Time (Single-Mode Auto Mode): Avg 19 to 21 Seconds
• Fiber Tensile Test Force: Approx. 2.0 N
• Electrode Life: Approx. 1,500 Splices
• Dimensions: 157 mm (W) × 178 mm (D) × 171 mm (H)
• Weight: 2.6 kg including Battery
• Battery Pack: Rechargeable lithium-ion battery

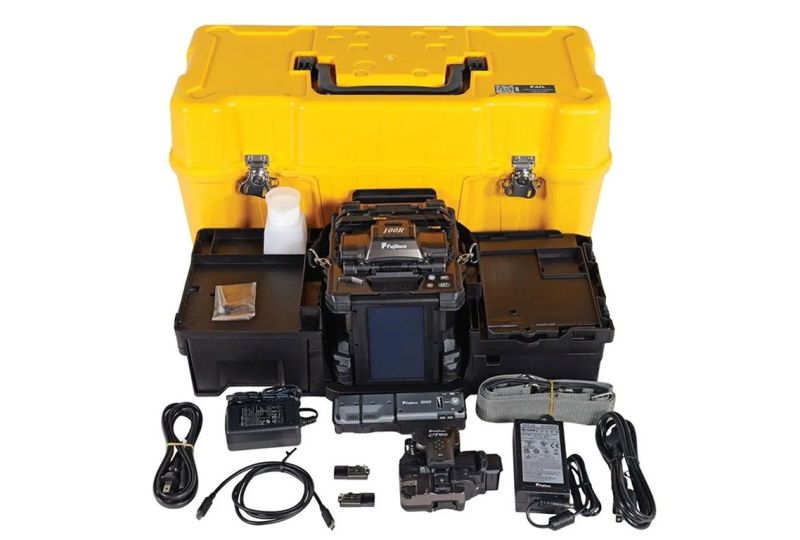

Included Accessories with Kit (S018712):

• BTR-19 Battery
• ADC-22 AC Adapter
• ACC-19 AC Cord
• ADC-09A AC Adapter with ACC-09 Cord
• ELCT2-16C Electrodes (pair) with VG12-02 V-Grooves
• FH-80-12 Fiber Holders (pair)
• USB-02 Cable
• Alcohol Dispenser
• Quick Reference Guide
• TS-04A Splicer Tripod Screw
• TS-04B Cleaver Tripod Screw
• On-board Instructional Manual
• CC-48 Transit Case
• ST-02 Splicer Strap
• CT60 Fiber Cleaver
• RS01 Thermal Fiber Stripper
