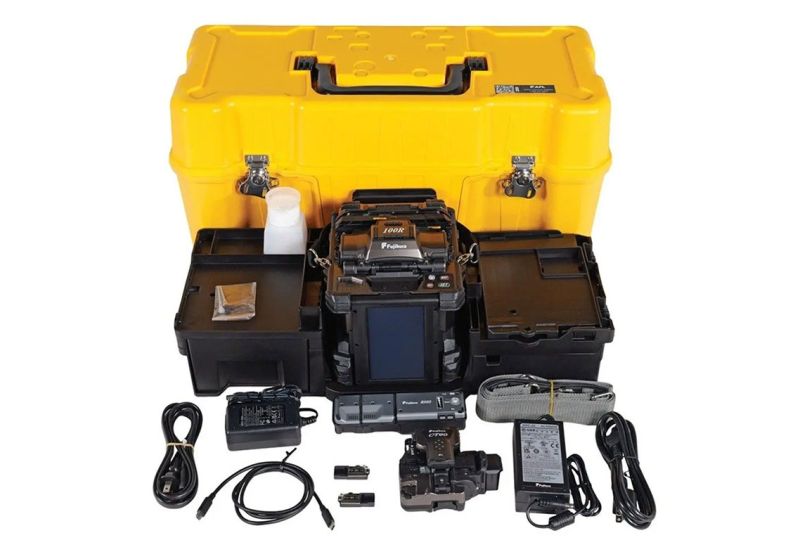

AFL 100R Fiber Optic Fusion Splicer with 200 μm Fiber Accessories SpliceReady Kit

The AFL 100R Mass Fusion Splicer is engineered to overcome the unique splicing challenges of rollable ribbon fiber in today’s high-density fiber networks. Featuring Intelligent Alignment Control, the 100R automatically corrects fiber seating, end-face gaps, and axis alignment across up to 16 fibers simultaneously to deliver consistently low, uniform splice loss. By reducing operator dependency and improving splice repeatability, the 100R helps ensure reliable, low-loss connections in demanding data center, hyperscale, metro, and long-haul network environments.

The SpliceReady Kit expands the standard 100R package with specialized 200 µm ribbon fiber accessories, cleaning supplies, and fiber alignment tools required for preparing, handling, and splicing high-density ribbon fiber cables in modern data center and telecom environments.

Features of Fiber Optic Splicer:

• Intelligent Alignment Control for hands-free, precise fiber alignment
• Auto Placement Correction for proper fiber seating in the V-groove
• Gap Alignment Correction for uniform end-face gaps across all fibers
• Cleaver tracking and upkeep with wireless communication
• Axis Offset Correction for consistent fiber alignment during fusion
• Automated wind protector, tube heater, and splice operation
• User-replaceable V-grooves
• Graphical User Interface with 5.0" touchscreen
• Multi-function transit case with integrated workstation

Applications for Fiber Splicer:

• Data Center and hyperscale fiber optic cable installation
• High fiber count metro and campus networks
• Long-haul network installations and repairs
• Trunk cable repair with Splice-on MPOs
• High-density ribbon splicing (including 200 µm loose fiber)

Specifications for 100R Splicer:

• Fiber Alignment Method: Self-Clad Alignment with Surface Melting Tension
• Fiber Capacity: Single fiber up to 16-fiber ribbon
• Applicable Fiber: Single-mode and multimode fiber (125 µm cladding)
• Splice Time (Single-Mode Fast Mode): Avg 16 to 18 Seconds
• Splice Time (Single-Mode Auto Mode): Avg 19 to 21 Seconds
• Fiber Tensile Test Force: Approx. 2.0 N
• Electrode Life: Approx. 1,500 Splices
• Dimensions: 157 mm (W) × 178 mm (D) × 171 mm (H)
• Weight: 2.6 kg including Battery
• Battery Pack: Rechargeable lithium-ion battery

Included Accessories with Kit (S018714)

• AFL 100R Standard Kit (S018665)
• FP-05 40 mm Protection Sleeves
• VG12-02-200 200 µm V-Groove
• FH-80-16PC 200 to 250 µm Pitch Conversion Fiber Holder
• FH-80-12-200 Fiber Holders
• RT-02 Ribbonizing Tool
• Splicer V-Groove Cleaning Kit
• FCC2 Fiber Cleaning Fluid (3 oz.)
• AFL WFW Cleaning Wipes Mini Tub (90 wipes)
