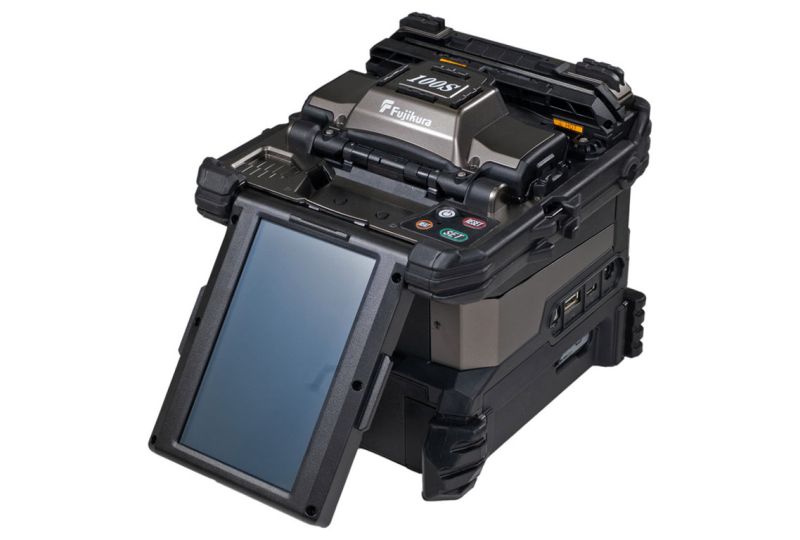

AFL 100S Fiber Optic Fusion Splicer without Bluetooth - Machine Only

The AFL 100S Core Alignment Fusion Splicer without Bluetooth combines intelligent automation with user-first design to streamline daily fiber splicing tasks. From faster fiber preparation and alignment to smart adjustments that eliminate manual guesswork, the 100S helps technicians work more efficiently and with greater confidence.

Its customizable interface adapts to the user, not the other way around, while robust engineering ensures consistent, high-quality fiber optic splicing in any environment. Whether you're on a tight schedule or tackling complex jobs, the 100S is designed to save time, reduce errors, and support peak performance in the field.

Features of Fiber Splicer:

• Large LCD touchscreen makes splicing as intuitive as using a smartphone
• Dual fiber loading reduces splicing time by up to 30%
• Automated fiber-length adjustment ensures consistent, high-quality splices
• Splice Coach® provides guided feedback to reinforce best practices and improve productivity
• Simple Fiber Guide enables faster, more accurate fiber loading with automatic alignment
• Custom Splicer Setup uses visual diagrams and clear explanations to simplify parameter adjustments
• Location-Based Locking allows users to define a GPS secure zone; the splicer automatically locks if removed and records splice locations for tracking
• Fast USB-C charging (4–6 hours) with support for external batteries
• Multi-function transit case with integrated workstation

Applications for Fiber Splicing:

• Distribution fiber repair
• Long-haul network installation
• Field termination with splice-on connectors
• Access network installation
• Fanout kits, pigtails and splice cassettes
• OSP cable installation and repair
• Optical modules – splitters, couplers, MUXs, EDFAs and attenuators

Specifications for the AFL 100S:

• Fiber alignment method: Active core alignment
• Fiber count: Single fiber
• Applicable fiber types: Single-mode and multimode
• Cladding diameter: 80–150 µm
• Coating diameter (with sheath clamp): Up to 3,000 µm
• Cleave length: 5–16 mm
• Splice time:
  • SM FAST: Avg. 7–9 sec
  • SM AUTO: Avg. 11–13 sec
  • AUTO: Avg. 14–16 sec
• Heat time:
  • 60 mm slim mode: Avg. 8–10 sec
  • 60 mm mode: Avg. 13–15 sec
• Tensile test force: Approx. 2.0 N
• Electrode life: Approx. 6,000 splices
