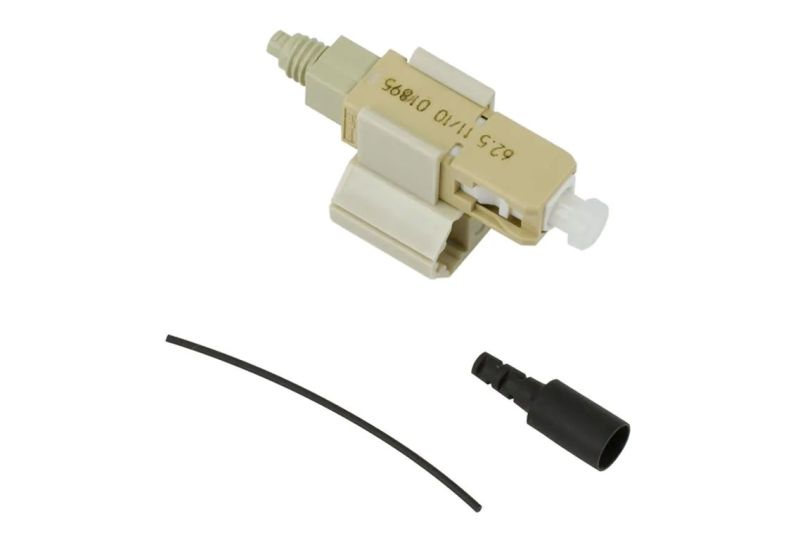

AFL 62.5 MM FAST-SC Connector - 100 Pack

The AFL FASTConnect® SC Connector is a factory pre-polished, field-installable solution that eliminates the need for hand polishing. Using proven mechanical splice technology, it ensures precise fiber alignment with a pre-cleaved fiber stub and proprietary index-matching gel for low-loss terminations in single-mode and multimode fibers.

FASTConnect® is compatible with 250µm and 900µm optical fibers and supports all primary fiber optic types. Each connector is color-coded to industry standards for easy identification during and after installation. A factory-installed wedge clip is included and discarded upon termination. The translucent wedge design allows for visual fault inspection (VFI), enabling a quick “pass/fail” check once physical contact is achieved.

Features:

• No epoxy, no polishing required
• Low insertion loss
• Fiber reinsertion capability (up to 3 times)
• 4.8 mm (SC only) cordage compatibility
• VFI accessory for easy installation verification

Specifications:

• Connector Type: SC Connector
• Fiber Type: 62.5µm/125µm Multimode Fiber, OM1
• Housing Color: Beige
• Cable Type: 900µm
• Average Insertion Loss: 0.10 dB, Maximum: 0.50 dB
• Average Return Loss: -25 dB, Maximum: -20 dB
• Operating Temperature: -40°C to +75°C (-40°F to 167°F)
• Quantity: 100 pack
