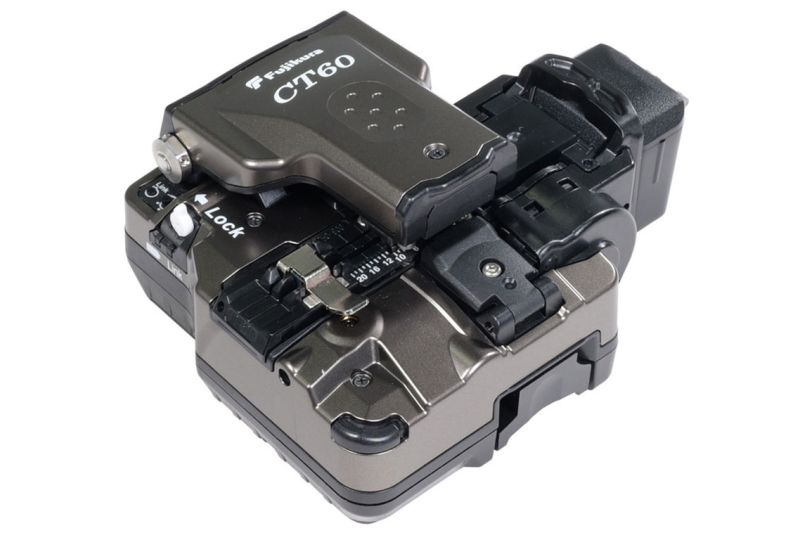

AFL CT60 Fiber Cleaver

The AFL CT60 Fiber Optic Cleaver is built for technicians who need repeatable, high-quality cleaves in both lab and field environments. Designed for single and ribbon fiber applications, the CT60 combines motorized blade rotation, Bluetooth connectivity, and rugged construction to deliver consistent results with minimal maintenance.

With smart blade management and seamless integration with compatible AFL fusion splicers, the CT60 helps reduce errors, extend blade life, and improve overall workflow efficiency.

Features of the CT60 Fiber Optic Cleaver:

• One-Handed Operation: Simple toggle button and ergonomic design for easy, single-hand use.
• Motorized Blade Rotation: Automatic rotation ensures consistent cleaves and extends blade life up to 60,000 cleaves.
• Bluetooth Connectivity: Pairs with AFL splicers for smart blade tracking and maintenance alerts.
• Dual & Ribbon Cleaving: Cleaves two fibers at once and supports ribbons up to 16 fibers.
• 28 Blade Positions: Eliminates manual blade height adjustments, providing finer control and easier maintenance.
• Easy Maintenance: User-replaceable blades and clamp arms reduce downtime.
• Durable & Portable: Drop-tested up to 30 inches (76 cm) and weighs just ~293 g (~10.3 oz).
• Compact Design: Palm-sized and easy to transport.

Specifications for the S018654:

• Fiber Type: Single-mode & multimode optical fiber
• Fiber Count: Single, up to 16 fibers
• Cladding Diameter: Approx. 125 µm (micron)
• Applicable Coating:
  • Fiber plate AD-60A: Max. 900 µm coating diameter maximum
  • Fiber plate AD-60B: Max. 3 mm coating diameter maximum
  • Fiber Holders: FH-50, FH-60, FH-70, FH-100, FH-110 series
• Cleave Length
  • Fiber Plate AD-60A: ≤250 µm: 5–20 mm (0.20–0.79 in); 900 µm: 10–20 mm (0.39–0.79 in)
  • Fiber Plate AD-60B: 3.0 mm max: 14–20 mm (0.55–0.79 in)
  • Fiber holder: Approx. 10 mm (0.39 in)
• Cleave Angle: Single fiber Avg. 0.3 to 0.9 degrees, Fiber Ribbon Avg. 0.3 to 1.2 degrees
• Blade Life: ~60,000 cleaves
• Dimensions (lever closed): 4.45 x 3.62 x 2.13 in (W x D x H) / 113 x 92 x 54 mm
• Temperature Operate: -10°C to 50°C (14°F to 122°F)
• Temerpature Storage: -40°C to 80°C (−40°F to 176°F)
• Weight: Approx. 293 g including battery and AD-60A
• Power: 2 batteries LR03/AAA dry battery
• Screw hole for tripod: 1/4-20UNC
• Connectivity: Bluetooth 5.2
