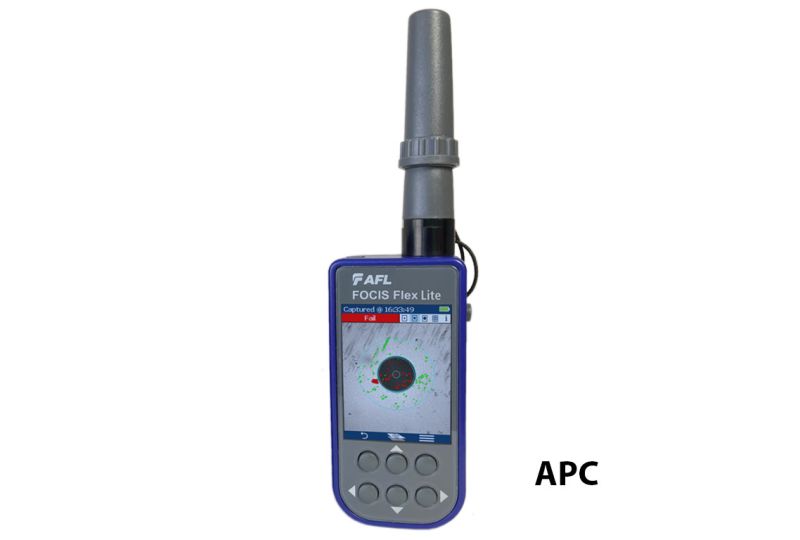

AFL FOCIS Flex Lite - Fiber Optic Inspection Scope Kit with APC Tips and One-Click Cleaner

The FOCIS Flex Lite Fiber Optic Connector Inspection System is designed for fast and accurate analysis of fiber optic connectors. It provides technicians with clear, reliable results based on industry and user-defined standards. With a single button press, the system auto-focuses, centers, captures the end-face image, applies pass/fail criteria, and instantly displays the results. This streamlined process eliminates guesswork, ensuring precise inspections in seconds. Compact, fast, and user-friendly, the FOCIS Flex Lite easily enables 100% connector inspection.

This kit includes a soft carry case/holster, USB-C cable, reference guide, 2 user-selected APC adapter tips (ferrule and bulkhead), user-selected One-Click cleaner

Features:

• 1-button to auto-focus, center, capture, analyze, and display results
• IEC 61300-3-35 (2015), IPC, and user-defined pass/fail analysis
• Untethered, compact, hand-held inspection scope
• Cost-effective inspection without compromise

Applications:

• Inspect fiber optic connectors on patch cords or in bulkhead adapters
• Optical network installation, troubleshooting, and maintenance
• Assure critical fiber infrastructure performs properly
• Keep fiber optic connections working at optimal performance levels
• Verify proper connector cleaning practices are being used

Key Specifications:

• Field of View: Live: 710 x 860 μm
• Manual Detection Capability (minimum): 0.25 μm
• Auto Analysis Resolution: <1.0 μm
• 13 supported languages
• Battery Operating Time (typical): 8 hours
• Operating Temperature: 0°C - 50 °C (32°F - 122°F)
