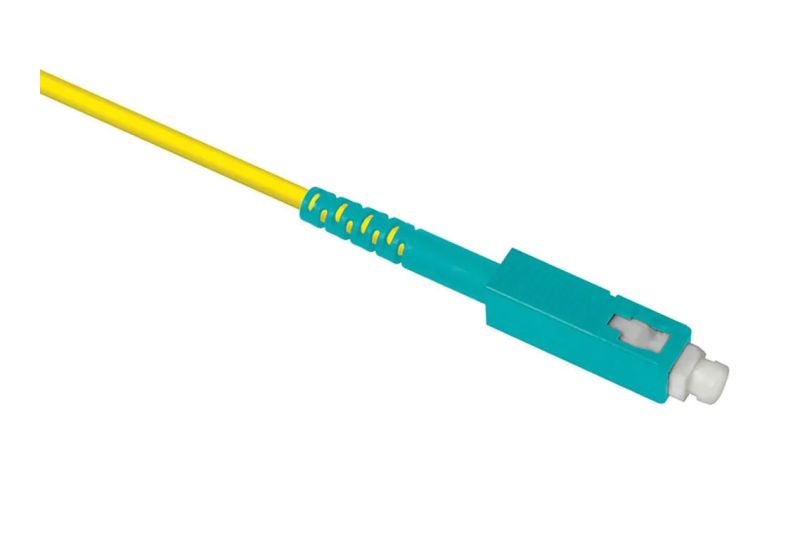

AFL FUSEConnect^® Splice-On SC Connector, 50µm (micron) Laser-Optimized Multimode Fiber, 3mm Aqua Boot

AFL’s FUSEConnect® fusion-spliced, field-installable SC connectors are uniquely designed with only four to five components. The factory pre-polished ferrule eliminates the need for polishing, adhesives, or crimping in the field, reducing operator error and costly connector scrap.

FUSEConnect uses a fusion splicer for field termination, addressing return loss concerns in analog optical networks. It is compatible with Fujikura fusion splicers and most fiber holder-based fusion splicing platforms. These connectors are ideal for RF-overlay FTTP networks, Cable TV backbone networks, outside plant (FTTD), MDU FTTP cabling, central office connector replacement, and data center installations.

Features:

• Field installable
• No adhesives, crimping or polishing
• Compatible with most fiber optic fusion splicers

Specifications:

• Connector Type: SC Connector
• Fiber Type: 50µm (micron) Laser-Optimized Multimode Fiber (LOMMF), Compatible with OM2, OM3 and OM4 fibers.
• Color: Aqua
• Cable Type: 3mm
• Connector Boot: 3mm
• Polish: PC (Physical Contact)
• Insertion Loss: 0.10 dB (average), 0.25 dB (maximum)
• Return Loss: ≤ -35 dB (PC)
• Operating Temperature: -40°C to +75°C (-40°F to 167°F)
