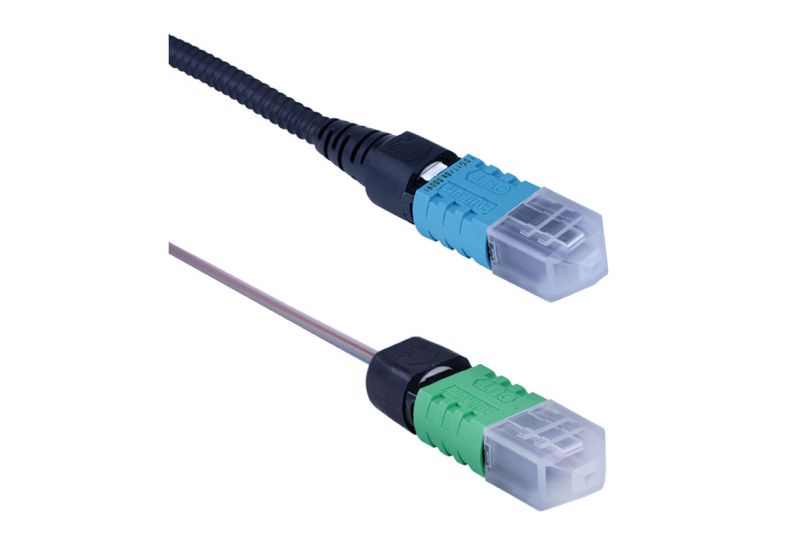

AFL FUSEConnect® Splice-On MPO Connector, APC, Female, Singlemode Fiber

AFL’s FUSEConnect® MPO splice-on connectors are field-installable, pre-polished connectors designed for quick, reliable fiber termination. With just six components, these connectors eliminate the need for field polishing, adhesives, or crimping—reducing operator error and minimizing scrap.

This updated MPO fiber connector design features a heat sleeve splice protector instead of a mechanical clamp, using the splicer’s onboard heater for protection. When paired with the RT-02 ribbonizing tool, the process becomes glue-free for cleaner terminations. FUSEConnect MPO connectors deliver factory-equivalent performance in the field. Compatible with standard ribbon, SpiderWeb Ribbon®, and loose tube cables, they simplify multi-fiber termination.

Features:

• Field-installable MPO splice-on connector
• Heat sleeve-style splice protector
• Glueless terminations with RT-02 ribbonizing tool
• Pre-polished, no crimping or adhesives
• Field-configurable MPO polarity
• Includes 3.0 mm round and flat ribbon boots
• Only six components

Applications:

• RF-overlay FTTP networks
• Cable TV backbone networks
• Outside plant and MDU FTTP cabling
• Data center installations
• Field restoration and patch cord customization

Specifications:

• Insertion Loss: 0.25 dB; Max: 0.75 dB
• Return Loss: > 65 dB
• Connector Type: MPO, Female (No Guide Pins)
• Fiber Type: Single-mode (OS1)
• Polish: Angled Physical Contact (APC)
• Housing Color: Green
