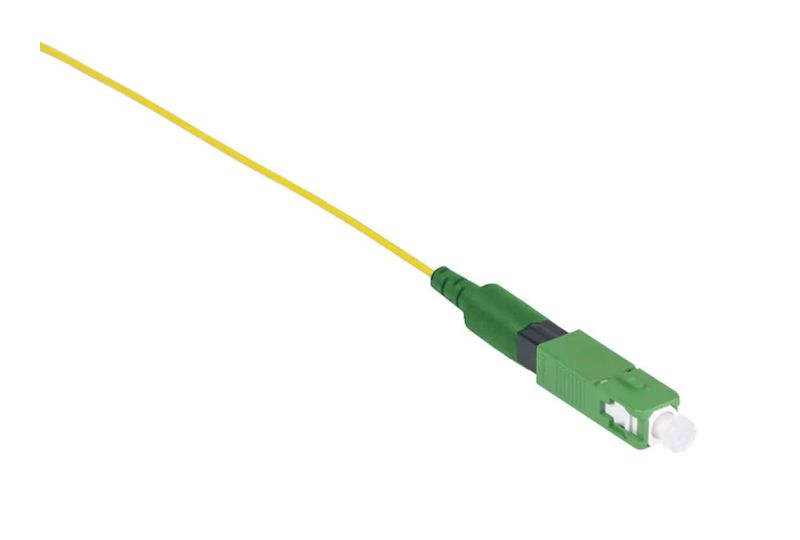

AFL FUSEConnect® Splice-On SC Connector, APC, Singlemode Fiber, 900µm Green Boot

AFL’s FUSEConnect® fusion-spliced, field-installable SC connectors are uniquely designed with only four to five components. The factory pre-polished ferrule eliminates the need for polishing, adhesives, or crimping in the field, reducing operator error and costly connector scrap.

FUSEConnect uses a fusion splicer for field termination, addressing return loss concerns in analog optical networks. It is compatible with Fujikura fusion splicers and most fiber holder-based fusion splicing platforms. These connectors are ideal for RF-overlay FTTP networks, Cable TV backbone networks, outside plant (FTTD), MDU FTTP cabling, central office connector replacement, and data center installations.

Features:

• Field installable
• No adhesives, crimping or polishing
• Compatible with most fiber optic fusion splicers

Specifications:

• Connector Type: SC Connector
• Fiber Type: Singlemode Fiber, APC
• Color: Green
• Cable Type: 900µm
• Connector Boot: 900µm
• Polish: APC (Angled Physical Contact)
• Insertion Loss: 0.15 dB (average), 0.25 dB (maximum)
• Return Loss: ≤ -65 dB (APC)
• Operating Temperature -40°C to +75°C (-40°F to 167°F)
• AFL Part #: FUSE-SC9SMA-6
