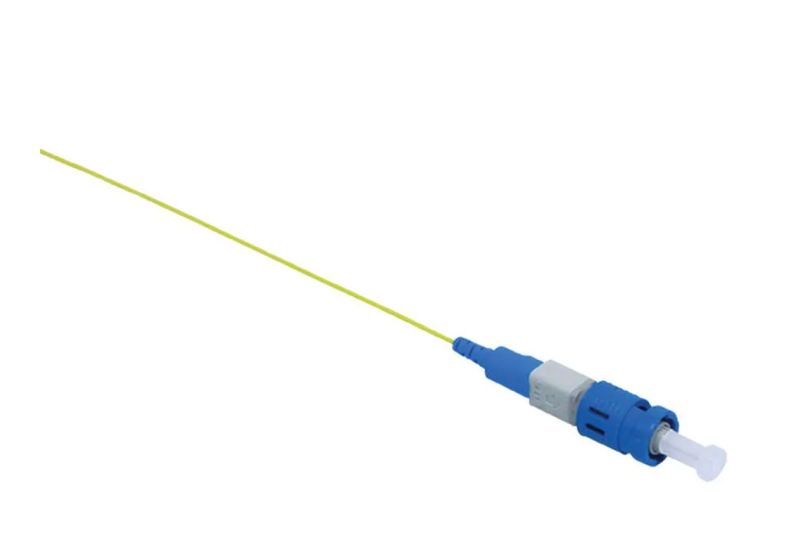

AFL FUSEConnect® Splice-On ST® Connector, Singlemode, 900µm (micron) Blue Boot - 6 Pack

AFL’s FUSEConnect^® fusion-spliced, field-installable ST^® connectors are uniquely designed with only four to five components. The factory pre-polished ferrule eliminates the need for polishing, adhesives, or crimping in the field, reducing operator error and costly connector scrap.

FUSEConnect ST Connector uses a fusion splicer for field termination, addressing return loss concerns in analog optical networks. It is compatible with Fujikura fusion splicers and most fiber holder-based fusion splicing platforms. These connectors are ideal for RF-overlay FTTP networks, Cable TV backbone networks, outside plant (FTTD), MDU FTTP cabling, central office connector replacement, and data center installations.

Features:

• Field installable
• No adhesives, crimping or polishing
• Compatible with most fiber optic fusion splicers

Specifications:

• Connector Type: ST Connector
• Fiber Type: Singlemode UPC
• Cable Type: 900µm
• Boot Color: Blue
• Connector Boot: 900µm
• Polish: UPC (Ultra Physical Contact)
• Insertion Loss: 0.15 dB (average), 0.25 dB (maximum)
• Return Loss: ≤ -55 dB (UPC)
• Operating Temperature -40°C to +75°C (-40°F to 167°F)
• AFL Part #: FUSE-ST9SMU-6
