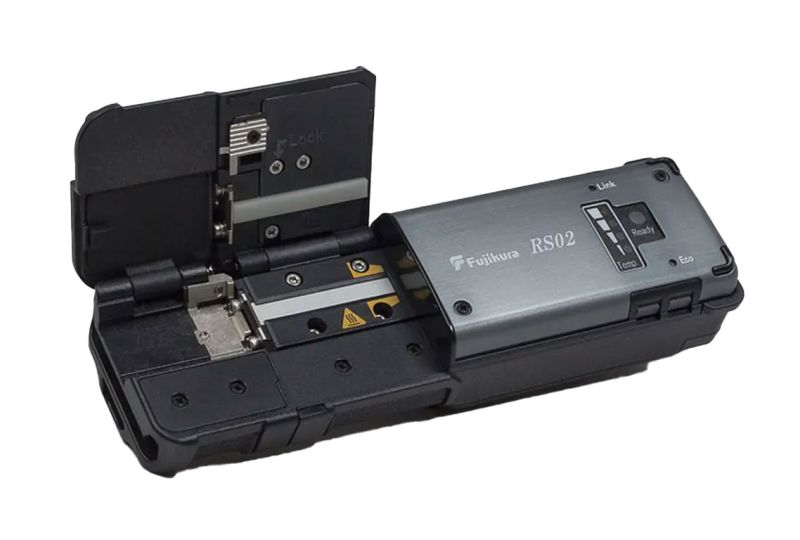

AFL RS02 Thermal Fiber Stripper for up to 16-Fiber Ribbon

The AFL RS02 Thermal Stripper delivers superior performance for single and multi-fiber stripping. With a fast 3-second heating time, it maximizes productivity. Ergonomic design and low pulling force make it comfortable and easy to use for high fiber count applications. The RS02 optical fiber stripper handles 200 μm coated fibers and ribbons, with an audible beep and LED indicating when the proper temperature is reached. A temperature selection switch allows easy optimization for different fibers or operating conditions. Compatible with all Fujikura field and factory-style fiber holders.

Bluetooth® capability lets users program the RS02 via an Android or iOS smartphone app for personalized operation.

RS02 Thermal Stripper Includes:

• DCC-11 power cord
• HEX-01 Hexagon Wrench
• BRS-02 Brush
• Instruction manual

Features:

• 3-second heating time with beep and LED notification
• Low pulling force for comfortable stripping
• Strips 200–400 μm coated fibers and ribbon fibers
• Ergonomic design for high fiber count applications
• Bluetooth®-capable for wireless connection to smartphones

Specifications:

• Applicable optical fiber: Glass optical fibers, capillary
• Fiber count: 1-16
• Cladding diameter: 125μm (micron)
• Coating diameter: 200–400 μm
• Stripping length: up to 1.38" (35 mm)
• Typical heating time: 3 sec (5 sec in Eco mode)
• Heating temperature: 185–284 °F (85–140 °C)
• Fiber holders: FH-40, FH-50, FH-60, FH-70, FH-100 series (except FH-50-250 and FH-50-900)
• Wireless Connectivity: Bluetooth® 4.1 LE (Android 5.0+, iOS 8.0+, iPhone 6+)
• Dimensions: 6.12 × 1.92 × 1.28 in (155.5 × 48.7 × 32.5 mm)
• Weight: 6.53 oz (185 g)
