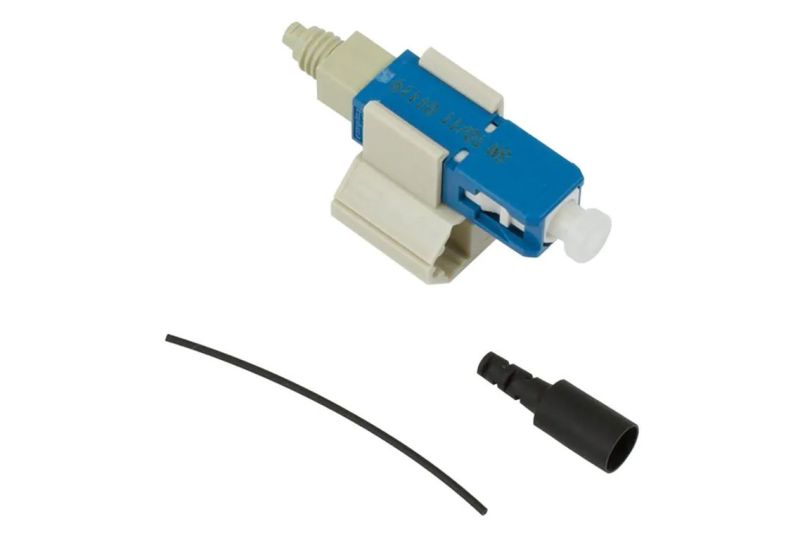

AFL FASTConnect^® SC Connector, UPC, Singlemode Fiber - 100 Pack

The AFL FASTConnect® SC Connector is a factory pre-polished, field-installable solution that eliminates the need for hand polishing. Using proven mechanical splice technology, it ensures precise fiber alignment with a pre-cleaved fiber stub and proprietary index-matching gel for low-loss terminations in single-mode and multimode fibers.

FASTConnect® is compatible with 250µm and 900µm optical fibers and supports all primary fiber optic types. Each connector is color-coded to industry standards for easy identification during and after installation. A factory-installed wedge clip is included and discarded upon termination. The translucent wedge design allows for visual fault inspection (VFI), enabling a quick “pass/fail” check once physical contact is achieved.

Features:

• No epoxy, no polishing required
• Low insertion loss
• Fiber reinsertion capability (up to 3 times)
• 4.8 mm (SC only) cordage compatibility
• VFI accessory for easy installation verification

Specifications:

• Connector Type: SC Connector
• Fiber Type: Singlemode, UPC
• Housing Color: Blue
• Cable Type: 900µm
• Average Insertion Loss: 0.20 dB, Maximum: 0.50 dB
• Average Return Loss: -55 dB, Maximum: -45 dB
• Operating Temperature -40°C to +75°C (-40°F to 167°F)
• Quantity: 100 pack
