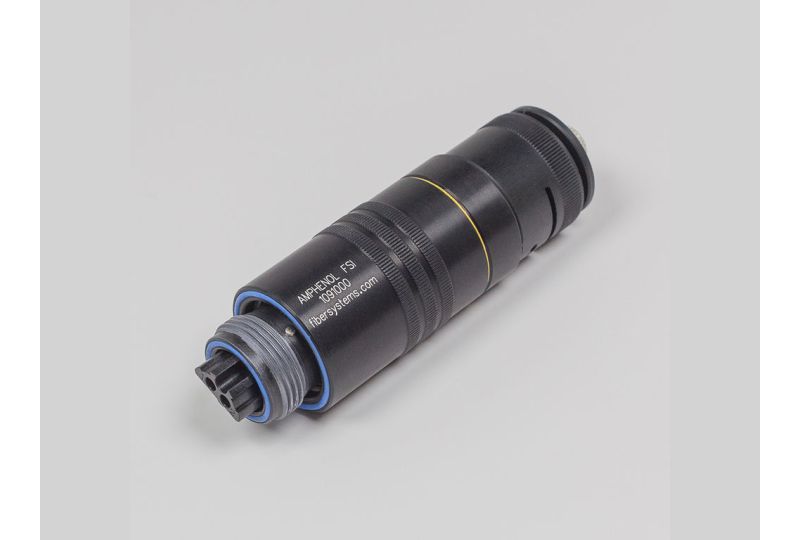

AFSI 109 Series TAC-4 4-Channel Plug Hermaphroditic Connector - 0.190" to 0.239" Cable

Amphenol Fiber Systems International (AFSI) designs rugged hermaphroditic fiber optic connectors for deployable communication systems. Built for durability and performance, these connectors offer a cost-effective solution with simple maintenance and reliable optical performance.

The AFSI 109 Series hermaphroditic connectors provide maximum deployment flexibility and is a direct replacement for the TAC4. Each plug can act as either a plug or a receptacle, allowing seamless integration into various system architectures. This design enables cable assemblies to be daisy-chained, extending communication distances as needed in field applications.

The 109 Series meets or exceeds the SMPTE 358M standard for harsh-environment, multi-channel fiber optic connectors—making it ideal for demanding outdoor broadcast applications, including high-definition television (HDTV) signal transmission.

Features:

• Available in 2- and 4-channel configurations
• Compatible with single mode fiber
• M29504/14 and M29504/15 termini
• Cable assemblies offered on reels
• Hermaphroditic design enables plug-to-plug connectivity
• Requires Termini. See Related items

Applications:

• Deployable broadcast networks, including HDTV
• Outdoor fiber optic interconnect systems
• Emergency restoration networks
• Ship-to-shore communications
• Military tactical deployable systems

Specifications:

• Fiber Type: 9/125 µm single mode
• Insertion Loss:
• Single mode (9/125): 0.4 dB typical
• Operating Temperature: -46°C to +71°C (-50.8°F to 159.8°F)
• Cable Seal Flexing: 200 cycles at 180° per EIA/TIA-455-1
• Mating Durability: 500 cycles per EIA/TIA-455-21
• Impact Resistance: Per EIA/TIA-455-2
• Crush Resistance: 450 lb minimum per EIA/TIA-455-26
• Material & Finish: Aluminum - Black Anodize
• Insert Material & Finish: Plastic - Black
• Dust Cap: Plastic
