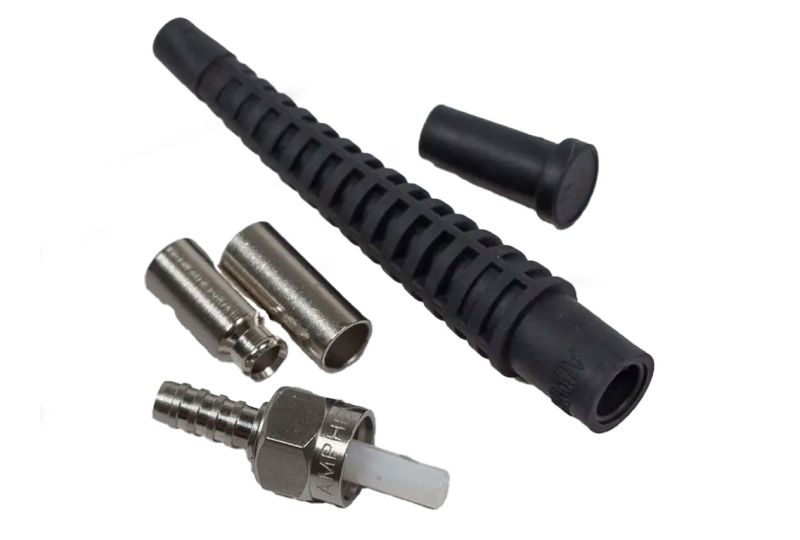

Amphenol 905 SMArt SMA Connector, 128µm (micron) Ceramic Ferrule, 3mm Boot, Hex Nut

The Amphenol SMArt SMA Connector features ceramic ferrules that deliver consistent performance and a uniform light beam. These characteristics are critical for applications demanding high repeatability, such as dermatology and complex surgeries. Designed to reduce clad moding, this SMA fiber connector enhances long-term device efficiency by ensuring a stable beam launch.

This ceramic ferrule SMA connector provides tighter tolerances compared to other SMA connectors. It includes a hex nut and a 3mm strain relief boot is included for added fiber optic cable protection.

Features:

• Designed for high-performance applications like eye surgery, where beam uniformity is essential.
• Constructed with zirconia ceramic ferrules for precise fiber alignment.
• Fully compliant with military SMA and IEC 61754-22 standards.
• Ferrules are press-fit into stainless steel bodies to ensure durability.

Specifications:

• Ferrule Hole Size: 128µm
• Typical Zirconia Ferrule Hole Tolerance: +2 to 10um/-0um
• Epoxy Required to Secure Fiber to Ferrule: Yes
• Ferrule Length: .38620 +.00015 / -.00030 "
• Ferrule Outer Diameter (OD): 3.172 +0.0 / -.006 mm
• Crimp Ferrule: Yes
• Coupling Nut Type/Material: Hex, Stainless Steel
• Boot Diameter (Rear ID): 2.84mm
• Boot Logo: Yes
• Boot Color: Black
• Cap Style: T-Style
• Sterilization: Autoclave, ETO, Chemical
