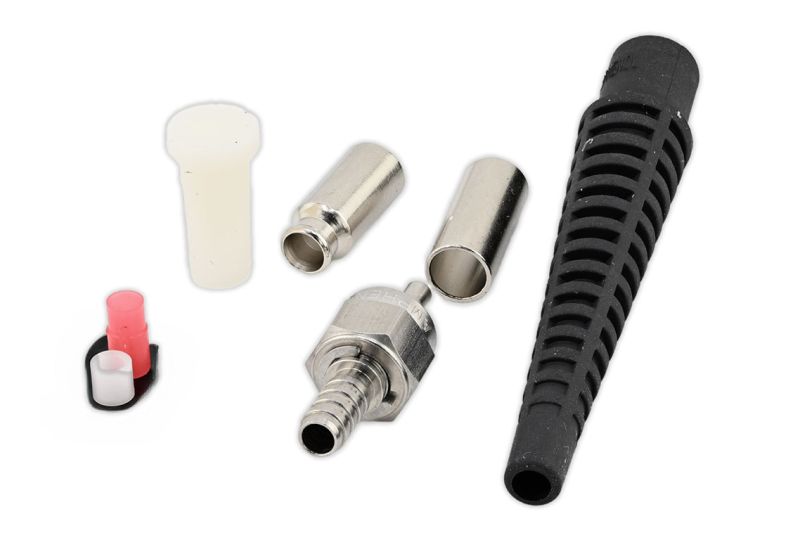

Amphenol 906 SMA Connector, 231µm (micron) Stainless Steel Ferrule, 3mm Boot

The Amphenol 906 SMA connector features a stainless steel ferrule that delivers high-precision, durable fiber optic connections for critical medical applications. With a stepped ferrule design, it ensures superior performance in high-power environments, providing secure and long-lasting connections. This SMA fiber connector includes a 3mm black strain relief boot for added fiber protection.

Features:

• Stepped ferrule and durable stainless steel hex nut for secure connections
• High reliability and performance in demanding fiber optic applications
• Includes a black 3mm boot with a logo

Specifications:

• Front Ferrule Hole Size and Tolerance: 231µm (+10/-0 µm)
• Ferrule Length: 9.86 mm (0.3882")
• Ferrule Outer Diameter (OD): 3.08 mm (0.120")
• Crimp Ferrule: Yes
• Step Crimp Modified Ferrule: Yes
• Coupling Nut Type/Material: Hex / Stainless Steel 303
• Centering Sleeve: yes
• O-Ring: Yes
• Boot Diameter - Rear Inner Diameter (ID): 2.8mm
• Boot Logo: Yes
• Cap Type: T-Style
• Cap Color: Black
• Cap Slit: No
• Cap Logo: No
• Tether Loop: No
