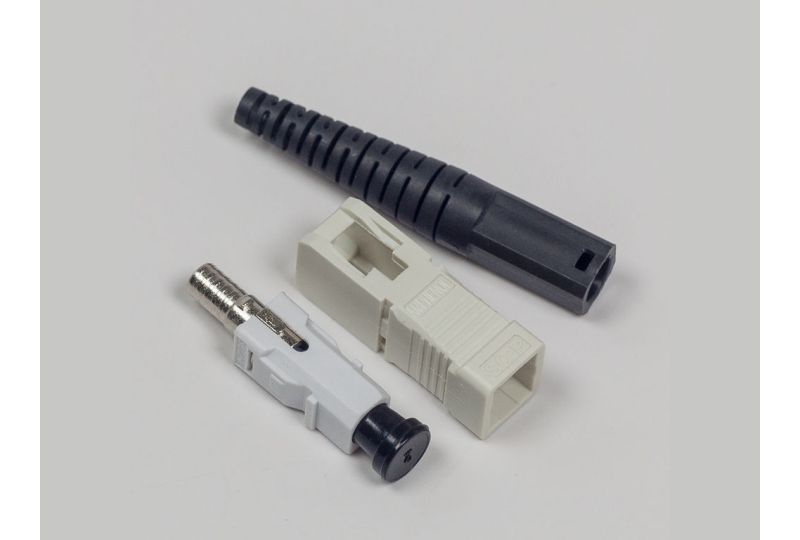

Amphenol SC Connector, Multimode, 128µm (micron) Ceramic Ferrule, 3mm Black Boot

Amphenol’s high-performance fiber optic SC connector features a push/pull retention mechanism for easy insertion and removal, making it ideal for standard applications. Designed for high manufacturing yields and superior quality, the SC fiber connector includes an internal cavity and epoxy injection tube to virtually eliminate improper epoxy application. These connectors comply with EIA/TIA-604-3 and IEC 61754-4 standards and are third-party tested per Telcordia GR-326 CORE specifications.

Features:

• Beige Polymer Body, Ceramic Pre-Radius Ferrule
• Pull-proof design prevents signal interruption.
• Easy push-pull coupling enables quick installation with an audible click to confirm locking.
• A Teflon tube in the rear ensures clean epoxy injection.
• High-temperature, UL 94-V0 rated plastic housing.
• Precision ferrules for low-loss performance.
• Available with 3.0mm black strain relief boot
• Blind-mate housing for easy alignment.

Specifications:

• Ferrule Hole Size: 128µm
• Ferrule Type: Ceramic
• Recommended Cable Diameter: 3mm
• Coupling Sleeve Color: Beige
• Boot Color: Black
• Insertion Loss: ≤ 0.50dB (Typical Multimode)
• Return Loss: > 55dB
• Durability: < 0.2dB change after 200 mating cycles
• Temperature Resistance: < 0.3dB change, -40°C to +85°C (-40°F to 185°F)
