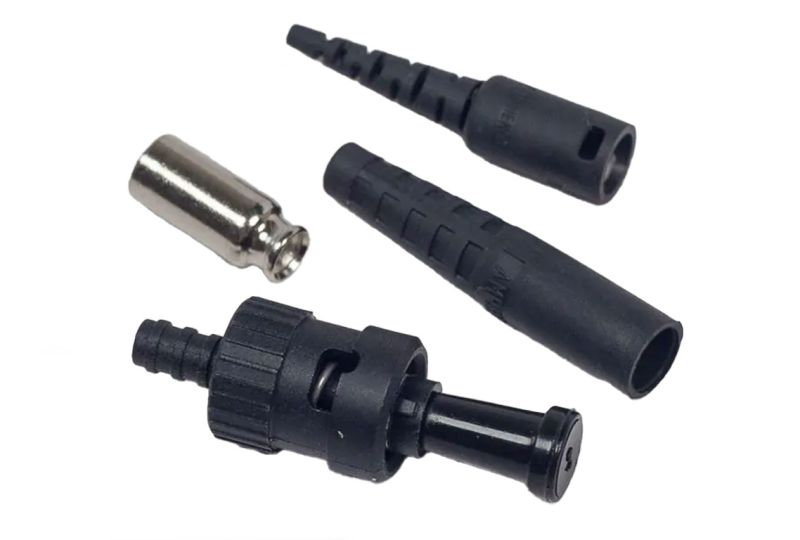

Amphenol ST® Connector, Multimode, 231µm (micron) Stainless Steel Ferrule, Plastic Body, 900µm & 3mm Black Boot

The Amphenol Standard ST^® Connector (Straight Tip) features a secure bayonet fiber optic connector (BFOC) with a push-to-turn locking mechanism that ensures positive engagement while preventing overtightening and fiber face damage. Compatible with large-core fibers, this ST fiber connector is commonly used in applications such as temperature, pressure, and semiconductor test connectors, medical devices (non-MRI), and the semiconductor industry. It is also utilized in power transformers, EV testing, instrumentation, and high-voltage temperature measurement systems.

The multimode ST Connector has a plastic body and a stainless steel ferrule. A black strain relief boot is included to provide added protection for fiber optic cables.

Features:

• ST connector body and coupling nut are flame-retardant, lightweight polymer.
• Prevents overtightening and fiber face damage
• Durability: < 0.2dB change, 500 Mating Cycles

Specifications:

• Ferrule Size/Tolerance: 231µm (+10/-0 µm)
• Ferrule Material: Stainless Steel
• Body Material: Plastic
• Nut Material: Plastic
• Insertion Loss (IL): Based upon fiber type and specification
• Return Loss (RL): Based upon fiber type and specification
• Boot Color/Diameter: Black 3mm or 900 µm
• Temperature Range: -40°C to 85°C (-40°F to 185°F)
