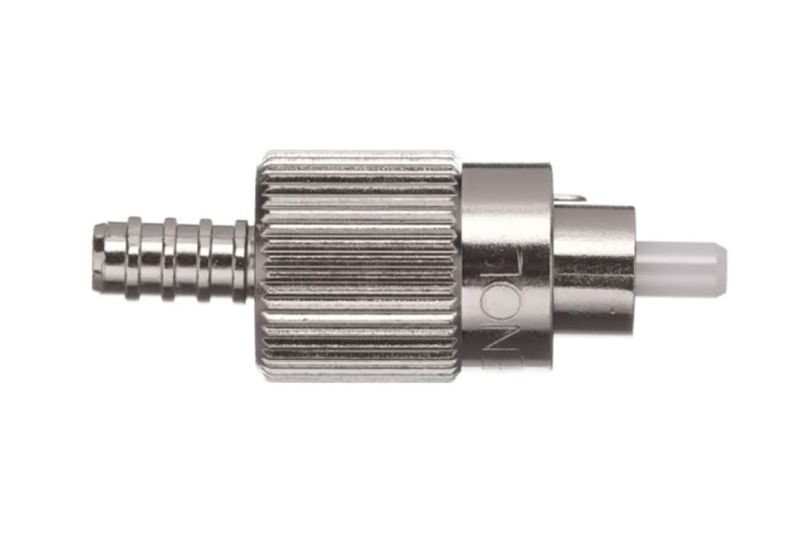

Amphenol FC Connector, Singlemode, 125.5µm (micron) Ceramic Ferrule, 2mm Black Boot

The Amphenol Fiber Optic Ferrule Connector (FC) provides reliable optical fiber termination for applications such as telecommunications networks, monitoring systems, data centers, and test and measurement equipment. Its threaded coupling nut enhances pull-out performance while the internal cavity and epoxy injection tube ensure proper epoxy application, improving manufacturing yields and overall product reliability.

This single-mode FC connector has a stainless steel body and zirconia ferrule. It includes a 2 mm black strain relief boot for added fiber optic cable protection.

Features:

• Provides efficient signal transmission with minimal loss
• Ceramic ferrule ensures precise fiber alignment for consistent optical performance
• One-piece construction
• A non-optical disconnect feature design prevents signal interruption
• Teflon tube in the rear of the connector ensures clean epoxy injection
• High-precision zirconia ferrules minimize insertion loss and return loss values
• IEC 61 Compliant

Specifications:

• Ferrule Size: 125.5 µm
• Tolerance: +1/-0 µm
• Ferrule Material: Ceramic (Zirconia)
• Body Material: Stainless Steel
• Nut Material: Nickel-Plated Brass
• Insertion Loss: .15 dB
• Return Loss: 55 dB
• Recommended Cable Diameter: 2 mm
• Boot Color: Black
• Sterilization: ETO/Autoclave
