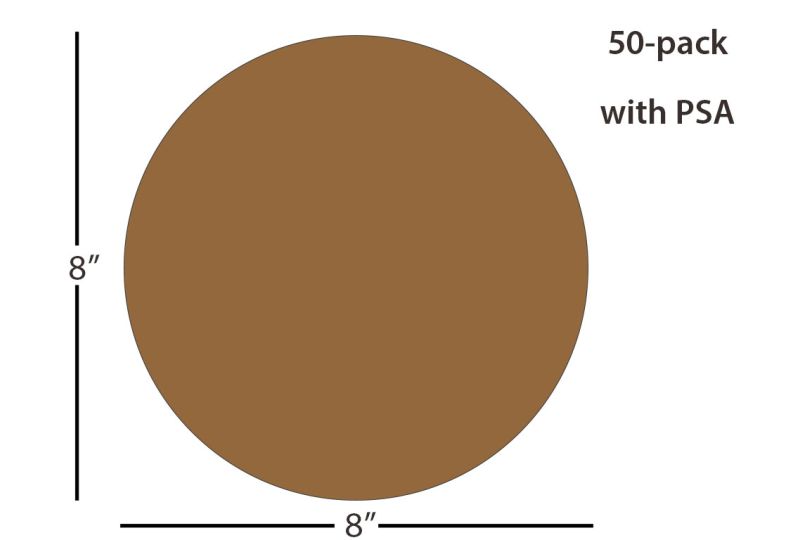

ÅngströmBrush® Aluminum Oxide Flock Pile Lapping Film - 8 inch 1µm (micron), PSA

The ÅngströmBrush® Aluminum Oxide Flock Pile Lapping FIlm can be used as a cleaning pad in between each polishing step or simply after the final polishing step. The tiny fibers on these multi-use films help remove particles from the fiber optic connector end face and decrease chances of cross contamination, thus increasing finish quality and overall process yield.

The 8" is the standard size for the Ultra Tec Ultrapol 1200, some Buelher polishing machine, as well as others.

Lapping Film Features:

• FO Type Name: AA1-MFPS
• Film Color: Brown
• Particle Type: Aluminum Oxide
• Grit Size: 1 micron (1μm)
• Flock Pile Material: Nylon
• Flock Pile Diameter: 1 d
• Flock Pile Length: 0.4 mm
• Base Film Material: Polyethylene terephthalate
• Base Film Thickness: 2 mil (50 μm)
• Quantity: 50 discs
• PSA Backed Film
• Product Life: Guaranteed up to 5 years from the manufactured date

Pressure Sensitive Adhesive is only recommended when it is completely necessary. Once the film is stuck to the polish surface it cannot be removed and reused. This creates a potential and likely problem of debris adhering to the film that cannot be removed. Any debris that comes in contact with the fiber may cause a scratch. PSA will increase the cost of the lapping film.
