ÅngströmBrush® Ultimas-F SiOx Flock Pile Lapping Film Disc - 5 inch
ULT26MFPG502N50

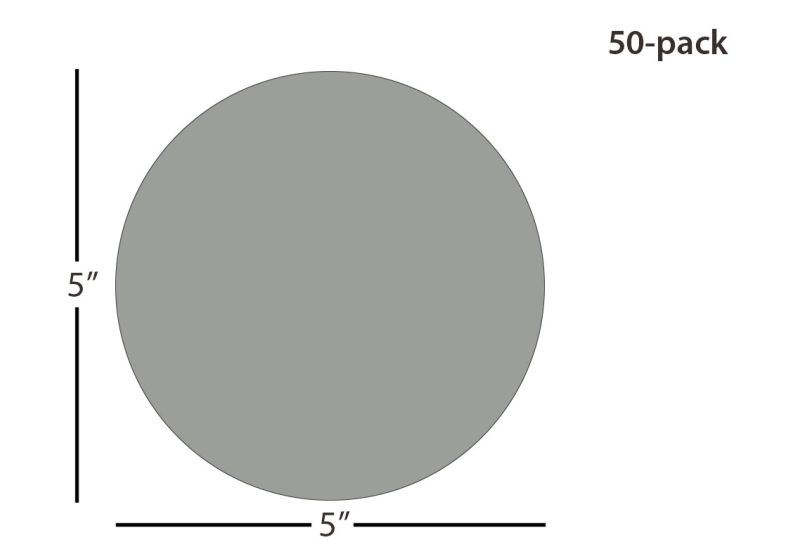

AngstromBrush Ultimas-F-Grey Silicon Dioxide Abrasive Coated Flock Pile Lapping Film, 5" Disc with 2mil Backing, package of 50 discs, by AngstromLap.
The ÅngströmBrush® Ultimas-F SiOx Flock Pile Lapping Film is designed to consistently polish irregular glass surfaces to a mirror finish, time after time. This cutting-edge flock is the latest generation of final polishing materials for MT fiber optic polishing. Compared to the traditional Cerium Oxide final polishing flock, the Ultimas-F Silicon Dioxide flock cleaning lapping film offers a superior fiber end-face finish with less scratching and reduced Core Dip, particularly in Multimode products.
The 5" disc is compatible with the Domaille APM-HDC-xxxx Series, Seikoh Giken SFP-5XX Series, and Ultra Tec UT-8812 or UT-8808 Polishing Machines.
Lapping Film Features:
The 5" disc is compatible with the Domaille APM-HDC-xxxx Series, Seikoh Giken SFP-5XX Series, and Ultra Tec UT-8812 or UT-8808 Polishing Machines.
Lapping Film Features:
- FO Type Name: SO26-MFPG
- Film Color: Grey
- Particle Type: Silicon dioxide film
- Flocking Pile Material: Nylon
- Flocking Pile Diameter: 1 d
- Flocking Pile Length: 0.4 mm
- Base Film Material: Polyethylene terephthalate
- Base Film Thickness: 2 mil (50 µm)
- Quantity: 50 discs
- Non-PSA Backed Film
- Product Life: Guaranteed up to 5 years from the manufactured date
| Ultimas Type | ULT-F Flock Pile for MT |
|---|
