ÅngströmLap^® Calcined Alumina Lapping Film Disc - 110mm 0.3 Micron

The ÅngströmLap^® Calcined Alumina Lapping Film is an Aluminum Oxide-based 0.3µm lapping film primarily designed for MM or SM fiber optic connectors as a final finishing step. For optimal results with the 0.3-micron lapping film, Fiber Optic Center recommends using it in conjunction with the Ultra Polish Solution. When combined with the Ultra Polish Solution, it delivers a near-flawless finish.

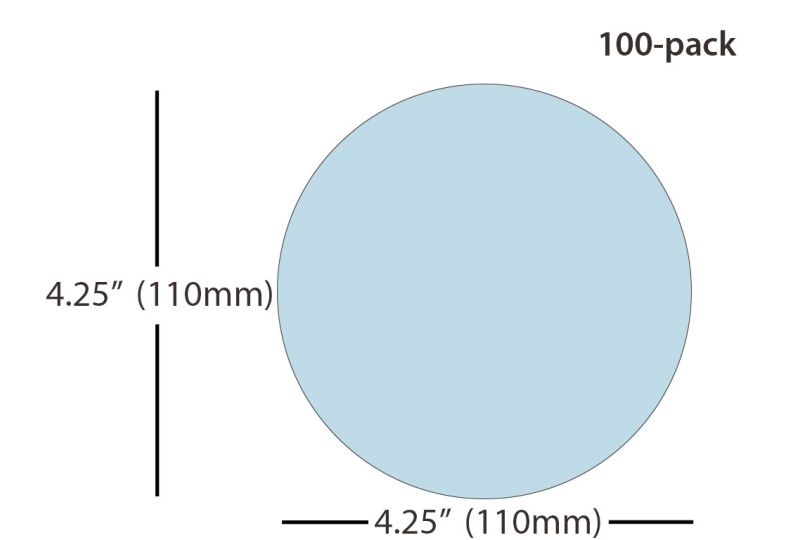

The 110mm disc is the standard size for the Seiko Instruments OLF-12 and OFL-15 Series Polishing Machines.

Lapping Film Features:

• FO Type Name: CA1-BF
• Film Color: Light Blue
• Tape Total Thickness: 60.0 ± 1.5 μm
• Surface Roughness: 0.15 ± 0.06 μm
• Particle Type: Calcined White Alumina
• Original Grit Size: 0.3 micron (0.3μm)
• Base Film Material: Poly-ethylene terephthalate
• Base Film Thickness: 2 mil (50 μm)
• Quantity: 100 discs
• Process Parameters Type: BF
• Non-PSA Backed Film
• Product Life: Guaranteed up to 5 years from the manufactured date
