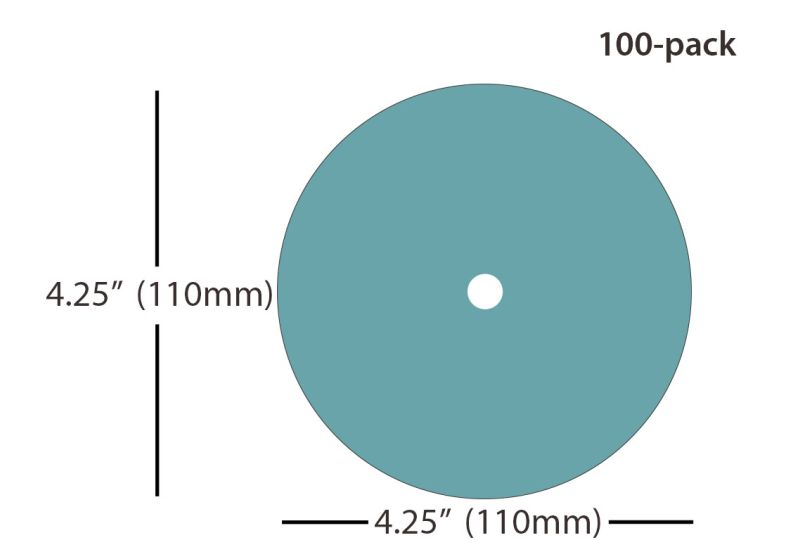

ÅngströmLap^® Aluminum Oxide Lapping Film Disc - 110mm 9µm (micron)

ÅngströmLap Aluminum Oxide Lapping Film is recommended when diamond lapping film is not needed, like in many fiber optic multimode applications. Some aluminum oxides can even be used as the final polish. The 0.5µm and 0.3µm will produce return losses of -50 dB or better, but because they cut the glass at a much quicker rate than the ceramic, undercut may occur. Aluminum Oxide 9µm lapping film is typically used as for polishing MM connectors.

The 110mm disc is the standard size for the Seiko Instruments OLF-12 and OFL-15 Series Polishing Machines.

Lapping Film Features:

• Film Color: Blue
• Tape Total Thickness: 94.0 ± 3.0 μm
• Surface Roughness: 1.60 ± 0.45 μm
• Particle Type: Aluminum Oxide film
• Grit Size: 9 micron (9µm)
• Base Film Material: Polyethylene terephthalate
• Base Film Thickness: 3 mil (75 µm)
• Quantity: 100 discs
• Process Parameters Type: MF
• Non-PSA Backed Film
• Product Life: Guaranteed up to 5 years from the manufactured date
