ÅngströmLap® MT EF Silicon Carbide Lapping Film Disc - 5 inch 3µm (micron)
SC3EF503N100

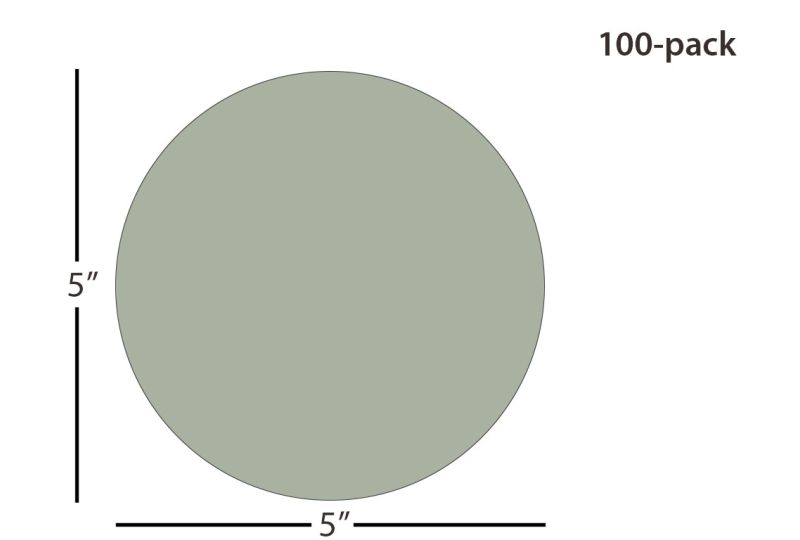

ÅngströmLap 3um MT EF Silicon Carbide Lapping Film, 5" Disc with 3mil Backing, package of 100 discs.
ÅngströmLap® Silicon Carbide Lapping Film is a more aggressive abrasive film material, often recommended over Aluminum Oxide Lapping Film for epoxy and glass removal. It is not commonly used for the later steps in the fiber optic polishing process. It produces an excellent surface finish and can help reduce overall polishing process time.
The 5" disc is the standard size for the Domaille APM-HDC-xxxx Series, Seikoh Giken SFP-5XX Series and Ultra Tec UT-8812 or UT-8808 polishing machines.
Lapping Film Features:
The 5" disc is the standard size for the Domaille APM-HDC-xxxx Series, Seikoh Giken SFP-5XX Series and Ultra Tec UT-8812 or UT-8808 polishing machines.
Lapping Film Features:
- FO Type Name: SC3-EF
- Film Color: Natural (green)
- Tape Total Thickness: 91.0 ± 2.0 μm
- Surface Roughness: 0.92 ± 0.25 μm
- Particle Type: Silicon Carbide
- Grit Size: 3 micron (3μm)
- Base Film Material: Polyethylene terephthalate
- Base Film Thickness: 3 mil (75 µm)
- Quantity: 100 discs
- Non-PSA Backed Film
- Process Parameters Type: EF
- Product Life: Guaranteed up to 5 years from the manufactured date
