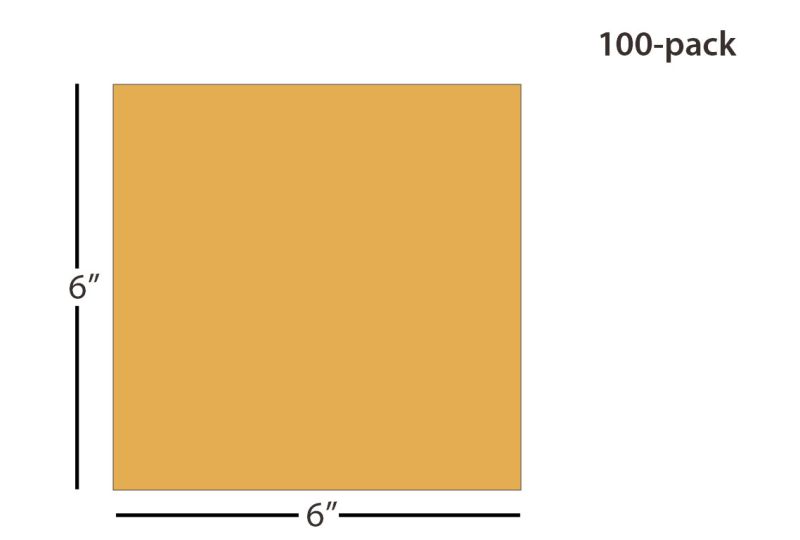

ÅngströmLap® Aluminum Oxide Lapping Film Sheet - 6 x 6 inch 16µm (micron)
AO16F663N100
AngstromLap 16um Aluminum Oxide Lapping Film, 6x6" Sheet with 3mil Backing, package of 100 sheets.
ÅngströmLap Aluminum Oxide Lapping Film is recommended when diamond lapping film is not needed, like in many fiber optic multimode applications. Some aluminum oxides can even be used as the final polish. The 0.5μm and 0.3μm will produce return losses of -50 dB or better, but because they cut the glass at a much quicker rate than the ceramic, undercut may occur. Aluminum oxide 16μm lapping film is typically used as for polishing MM connectors.
The 6" x 6" Sheet is the standard size for the Nanometer MCP-24 Series Polishing Machines.
Lapping Film Features:
The 6" x 6" Sheet is the standard size for the Nanometer MCP-24 Series Polishing Machines.
Lapping Film Features:
- FO Type Name: AO16-AF
- Film Color: Orange
- Tape Total Thickness: 100.0 ± 3.5 μm
- Surface Roughness: 3.7 ± 1.0 μm
- Particle Type: Aluminum Oxide film
- Grit Size: 16 micron (16μm)
- Base Film Material: Polyethylene terephthalate
- Base Film Thickness: 3 mil (75 µm)
- Quantity: 100 sheets
- Process Parameters Type: AF
- Non-PSA Backed Film
- Product Life: Guaranteed up to 5 years from the manufactured date
