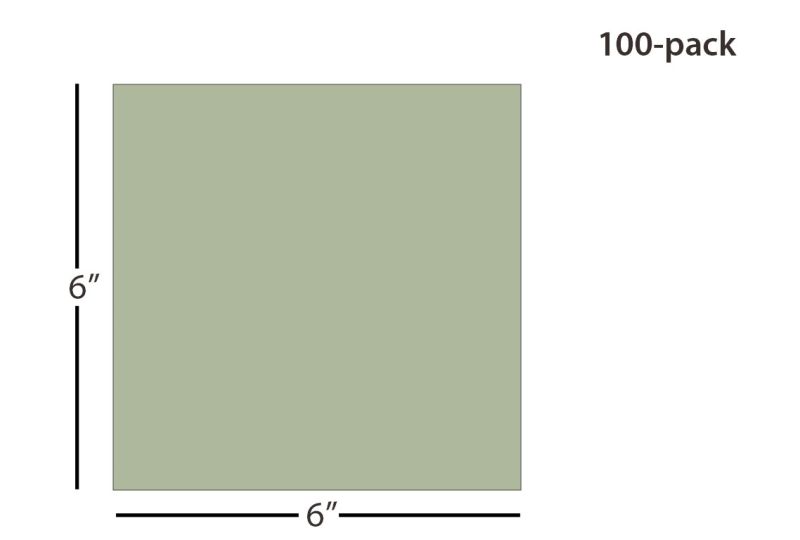

ÅngströmLap® Silicon Carbide Lapping Film Sheet - 6 x 6 inch 5µm (micron)
SC5F663N100
AngstromLap 5um Silicon Carbide Lapping Film, 6x6" Sheet with 3mil Backing, package of 100 sheets.
ÅngströmLap Silicon Carbide Lapping Film is a more aggressive abrasive film material, often recommended over Aluminum Oxide Lapping Film for epoxy and glass removal. It is not commonly used for the later steps in the fiber optic polishing process. It produces an excellent surface finish and can help reduce overall polishing process time.
The 6" x 6" sheet is the standard size for the Nanometer MCP-24 Series Polishing Machines.
Lapping Film Features:
The 6" x 6" sheet is the standard size for the Nanometer MCP-24 Series Polishing Machines.
Lapping Film Features:
- FO Type Name: SC5-AF
- Film Color: Yellow
- Tape Total Thickness: 86.5 ± 2.0 μm
- Surface Roughness: 1.005 ± 0.265 μm
- Particle Type: Silicon Carbide film
- Grit Size: 5 micron (5μm)
- Base Film Material: Polyethylene terephthalate
- Base Film Thickness: 3 mil (75 µm)
- Quantity: 100 sheets
- Non-PSA Backed Film
- Process Parameters Type: AF
- Product Life: Guaranteed up to 5 years from the manufactured date
