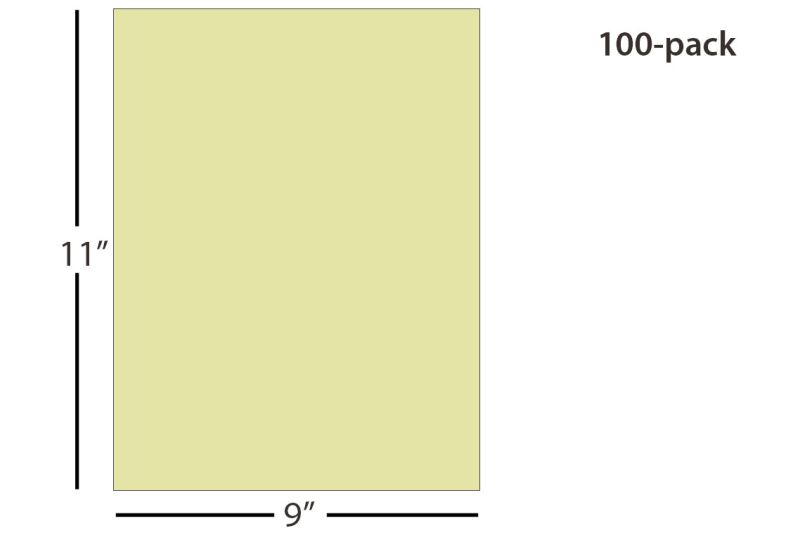

AngstromLap - 9x11" 3um Aluminum Oxide

ÅngströmLap Aluminum Oxide Lapping Film is recommended when diamond lapping film is not needed, like in many fiber optic multimode applications. Some aluminum oxides can even be used as the final polish. The 0.5um and 0.3um will produce return losses of -50 dB or better, but because they cut the glass at a much quicker rate than the ceramic, undercut may occur. Aluminum Oxide 3μm lapping film is typically used as for polishing MM connectors. The 9" x 11" Sheet is typically used for hand polishing.

Lapping Film Features:

• Film Color: Yellow
• Tape Total Thickness: 92.0 ± 2.0 μm
• Surface Roughness: 1.8 ± 0.6 μm
• Particle Type: Aluminum Oxide film
• Grit Size: 3 micron (3μm)
• Base Film Material: Polyethylene terephthalate
• Base Film Thickness: 3 mil (75 µm)
• Quantity: 100 sheets
• Process Parameters Type: GT
• Non-PSA Backed Film
• Product Life: Guaranteed up to 5 years from the manufactured date
