ÅngströmLap^® Sequoia Diamond Lapping Film Sheet - 6 x 6 inch 9µm (micron)

The ÅngströmLap Sequoia Diamond Lapping Film is an abrasive film used for polishing the end-face of fiber optic connectors. Its purpose is to shape the fiber geometries, such as restoring or forming the Radius of Curvature and Apex Offset of the ferrule. Diamond film exhibits an extended lifespan compared to conventional films, and its high-cut rate enables more efficient material removal for a faster polishing process.

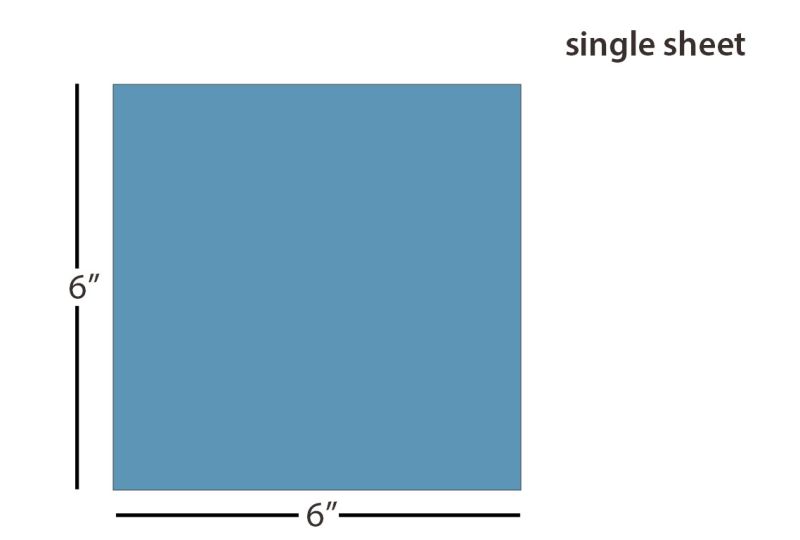

The 6" x 6" sheet is the standard size for the Nanometer MCP-24 Series Fiber Optic Polishing Machine.

Lapping Film Features:

• Film Color: Light Blue
• Tape Total Thickness: 86.0 ± 2.5 µm
• Particle Type: Diamond film
• Grit Size: 9.0 micron (9µm)
• Base Film Material: Polyethylene terephthalate
• Base Film Thickness: 3 mil (75 µm)
• Quantity: Single sheet
• Non-PSA Backed Film
• Process Parameters Type: KF

Product Life: Guaranteed up to 5 years from the manufactured date
