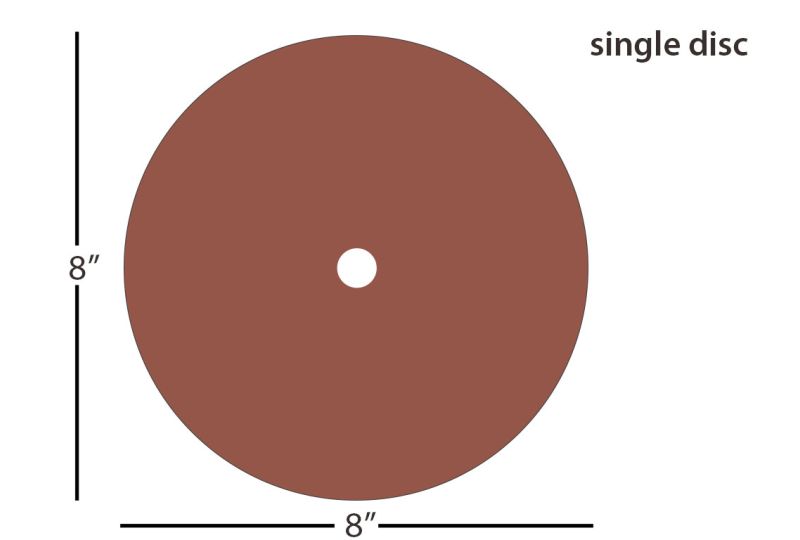

ÅngströmLap® Sequoia Diamond Lapping Film Disc - 8 inch 5µm (micron), Hole
D5BF80H3N1
AngstromLap Sequoia 5um Diamond Lapping Film, 8" Disc with center hole and 3mil Backing, single disc.
5µm Diamond Lapping Film has a long polishing life, high-cut rate and shapes fiber geometries. Brown 8" disc with center hole, 3 mil film. Request a quote.
The ÅngströmLap Sequoia Diamond Lapping Film is an abrasive film used for polishing the end-face of fiber optic connectors. Its purpose is to shape the fiber geometries, such as restoring or forming the Radius of Curvature and Apex Offset of the ferrule. Diamond film exhibits an extended lifespan compared to conventional films, and its high-cut rate enables more efficient material removal for a faster polishing process.
The 8" disc is the standard size for the Ultra Tec Ultrapol 1200, some Buelher Polishing Machines, as well as others.
Lapping Film Features:
Film Color: Brown
Tape Total Thickness: 81.0 ± 2.5 μm
Surface Roughness: 0.45 ± 0.15 μm
Particle Type: Diamond film
Grit Size: 5 micron (5μm)
Base Film Material: Polyethylene terephthalate
Base Film Thickness: 3 mil (75 µm)
Quantity: Single disc
Non-PSA Backed Film
Process Parameters Type: BF
Product Life: Guaranteed up to 5 years from the manufactured date
A center hole is not recommended unless the polishing machine requires one. A center hole will increase the cost of the lapping film.
