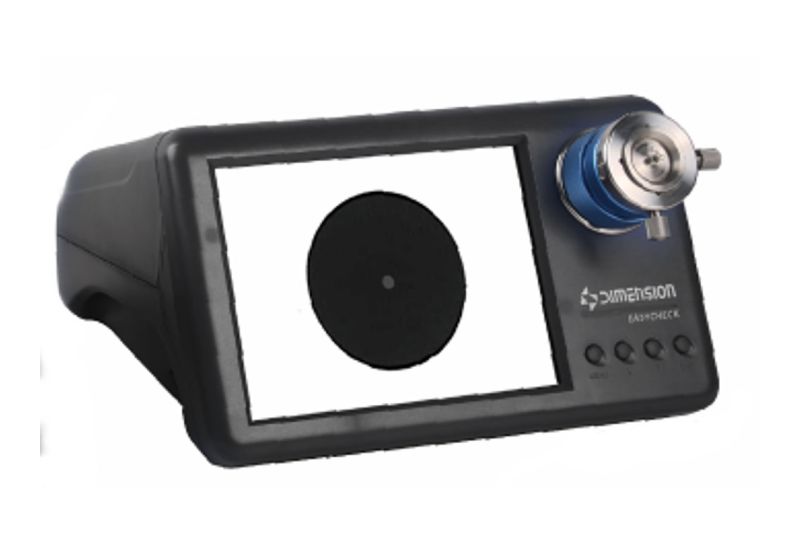

Dimension EC400/200KD EasyCheck Dual Magnification Fiber Endface Inspector

Dimension's Dual-Magnification Fiber Optic Inspection Equipment enables fast, efficient inspection of fiber end-faces using both 400x and 200x magnification. With dual-screen simultaneous display or easy switching between views, users can quickly detect both surface-level and microscopic defects.

At high magnification, fine defects on the fiber end-face become clearly visible. The system's key advantage lies in its single-station, single-focus operation allowing dual-magnification inspection without repositioning the sample, which boosts efficiency, reduces inspection stations, and lowers production costs.

Features:

• Dual magnification: inspect at 400x and 200x
• High-definition imaging with real-time display
• Supports simultaneous or switchable screen viewing
• Various interface options for connectivity
• Auto scan code and image capture
• EC400/200KD is the long working distance version of the EC400/200KC. It allows you to look at connectors that have pins (like MPO/MTP connectors)

Specifications:

• Magnification: 400X/200X
• X Y Adjustment: Adjustable
• Focus: Manual
• Display: 8" TFT LCD (800 × 600 pixels)
• Interface: 3 × USB, 1 × SD card slot, 1 × Ethernet port
• Power Consumption: 3W
• Working Temperature: 14°F to 104°F (–10°C to 40°C)
• Storage Temperature: –4°F to 131°F (–20°C to 55°C)
• Power Supply: DC 12V
• Weight: 6.3 lbs (1.6 kg)
• Size: 10.6 × 9.6 × 6.1 inches (270 × 245 × 155 mm)
