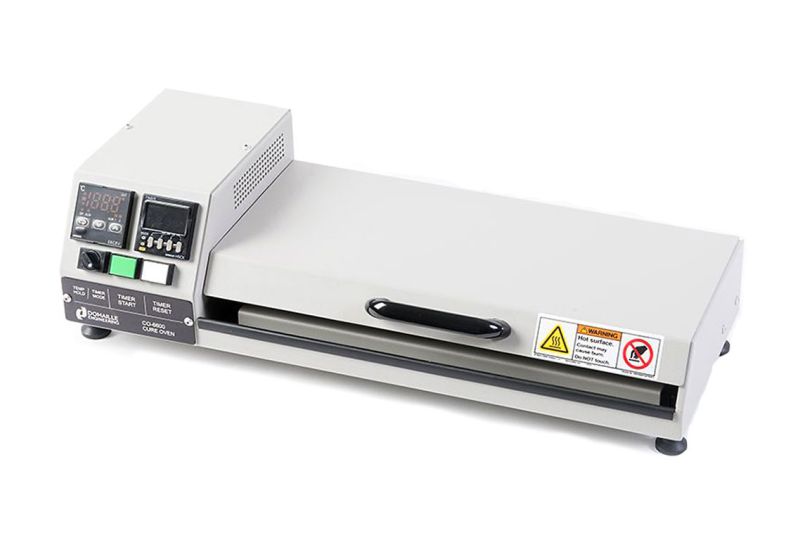

Domaille CO-6500 Epoxy Curing Oven with Vertical Tray for Fiber View Holders - 110V

The Domaille Engineering CO-6500 Universal Epoxy Curing Oven (110V/120V), featuring a 48-position Vertical Carrier Tray, is specifically designed to cure 24 MT and MT-RJ type ferrules simultaneously. Additionally, it can be used to cure popular single-fiber connector designs, including FC, SC, ST, and LC, with the use of a separate curing block. The oven can hold up to 48 fiber optic connectors at once and is equipped with a convenient tray system for easy loading.

The oven offers two curing operation modes:

• Timer Mode: The oven gradually increases to a selected temperature, maintains it for a set duration, and then gradually cools to room temperature by shutting off the heating element.
• Temperature Hold Mode: This mode maintains the oven at a constant selected temperature indefinitely.

Features:

• Maximum temperature: 140°C (284°F)
• Utilizes vertical carrier tray for EZ loading and maximum productivity
• May be configured to hold most connector styles
• CE Rated
