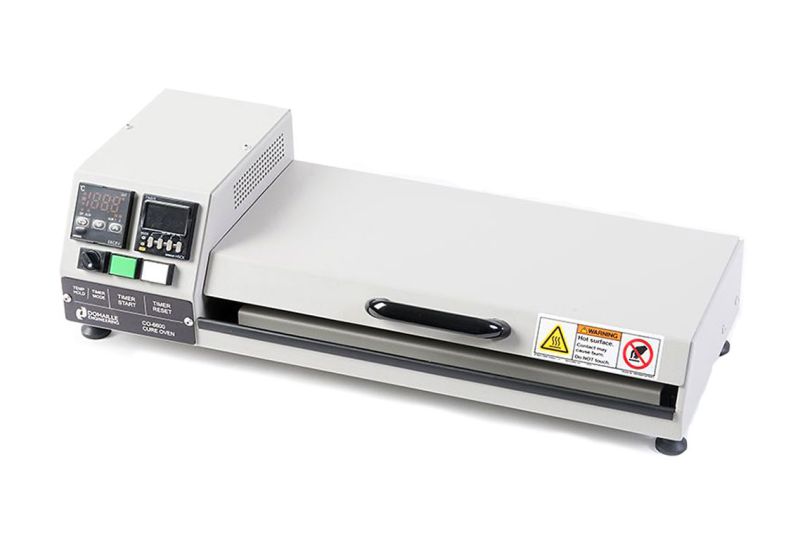

Domaille CO-6600 Epoxy Curing Oven with Vertical Tray for Molex Sleeves - 220V
CO-6600-V2
Domaille Engineering Universal Cure Oven with 48-position vertical carrier tray for use with Molex oven protection sleeves (CO15148). 220V
The Domaille Engineering CO-6600 Universal Epoxy Curing Oven (220V/240V) featuring an MT 48-position Vertical Carrier Tray for Molex Sleeves, is specifically designed for curing 24 MT and MT-RJ type connectors or 48 fiber optic connectors at a time. It can be used to cure popular single-fiber connector designs, including FC, SC, ST, and LC, with the use of a separate curing block. The curing oven is quipped with a convenient tray system for easy loading.
The oven offers two curing operation modes:
The oven offers two curing operation modes:
- Timer Mode: The oven gradually increases to a selected temperature, maintains it for a set duration, and then gradually cools to room temperature by shutting off the heating element.
- Temperature Hold Mode: This mode maintains the oven at a constant selected temperature indefinitely.
- Maximum temperature: 140°C (284°F)
- Utilizes horizontal carrier tray for EZ loading and maximum productivity
- May be configured to hold most connector styles
- Available in 220v configuration
- CE Rated
