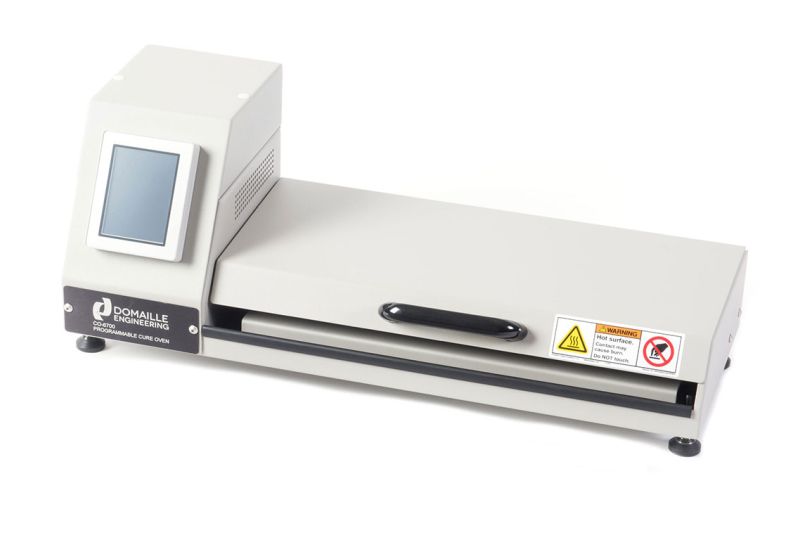

Domaille CO-6800 Programmable Epoxy Curing Oven with Vertical Tray for Fiber View Holders -220V

CO-6800-V

Domaille Engineering Programmable Universal Cure Oven with 48-position Vertical Carrier Tray for use with Domaille Fiber View connector holders (CO15048). 220V/240V
The Domaille Engineering CO-6800 Universal Epoxy Curing Oven (220V/240V) with 48-position Vertical Carrier Tray and a high-resolution 320x240 color user interface, allows more control of your curing processes. Designed to maximize productivity when curing epoxy on single and multi-fiber connectors. It utilizes a modular carrier tray for efficient assembly and loading of up to 24 MT connectors or 48 single fiber connectors (FC, SC, ST, and LC) per batch.

Compatible with DE Data Link™ smart factory software, the CO-6800 epoxy cure oven offers real-time remote monitoring of your entire production line.

The oven offers three curing operation modes:
  • Timer Mode: The oven gradually increases to a selected temperature, maintains it for a set duration, and then gradually cools to room temperature by shutting off the heating element.
  • Temperature Hold Mode: This mode maintains the oven at a constant selected temperature indefinitely.
  • Step & Ramp Mode: Allows the user to program up to a 7-step program for more advanced heating profile requirements.
Features:
  • High-resolution interface
  • Audible alarm
  • Password protect capabilities
  • Multi-Lingual function
  • Maximum temperature: 150°C (302°F)
  • Expansion capability for custom requirements (as requested)
