Domaille OptiSaber® OS7500P Laser Fiber Cleaver for PRIZM® Light Turn & MXC® Connectors

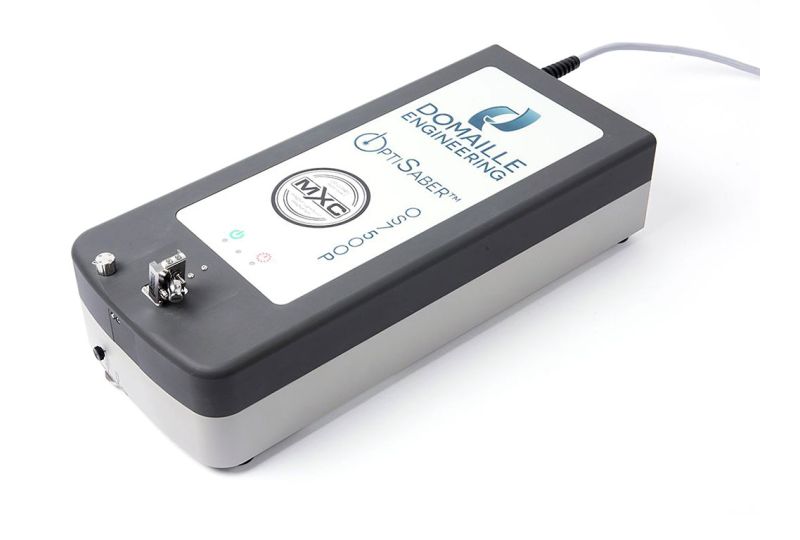

The Domaille Engineering OptiSaber® OS7500P Laser Cleaving System is designed to efficiently cleave optical fibers for the production of PRIZM® Light Turn & MXC® connectors. The OptiSaber® OS7500P fiber optic cleaver allows you to laser cleave up to four rows of 8, 12, or 16 fiber ribbons in a single load, eliminating the need to remove or reposition rows during processing. Operators can initiate the cleave cycle by using a hand or foot switch for easy activation.

The OS7500P was rigorously tested at US Conec and approved to meet their PRIZM® Laser Cleave Quality Guidelines (US Conec Doc# AEN-1919).

Features of the OS7500P

• Dimensions: 12.1” x 11.6” x 14.4” (308 x 294 x 366 mm)
• Fast, accurate operation that saves critical floor space
• Cleaves PRIZM® Light Turn® and PRIZM® MT ferrules
• Hand or foot switch activation
• Cleave up to 4 rows of 8, 12 or 16 fiber ribbons
• Cleaves multiple fiber ribbon rows in a single load (no repositioning required)
• Integrated Extract & Cyclone system minimizes handling of scrap fiber
• Optimal Precision with 10µm adjustments
• Available in 120 V or 240 V configurations

System Performance

• Co-planarity: < 20 µm (microns)
• Y-axis angle measured across core: < 3.5°
• Co-planarity between ribbons < 40 µm (microns)

Specifications:

• Laser Height: 6.6 inches (170 mm)
• Laser Width: 8.9 inches (225 mm)
• Laser Depth: 21.2 inches (538 mm)
• Laser Cooling: Air-cooled
• Typical Process Time: 3–4 seconds
• Operating Temperature Range: 41°F to 86°F (5°C to 30°C)
