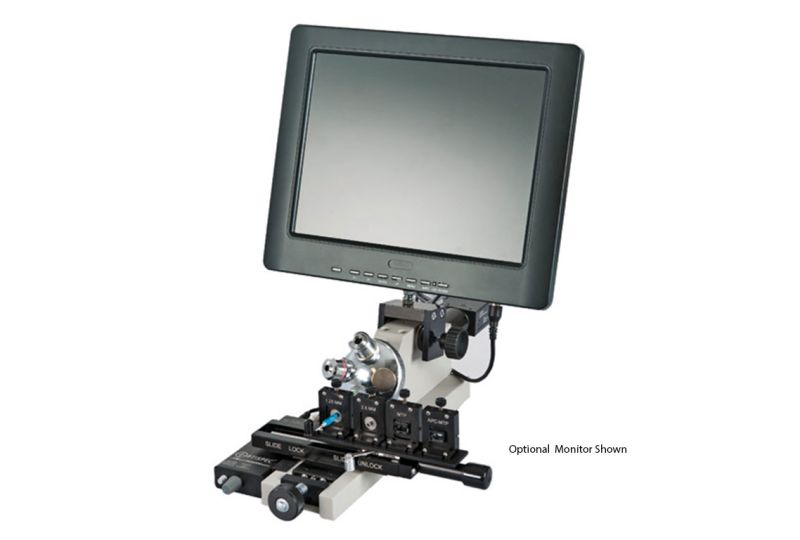

Domaille OptiSpec® 200x, 425x and 875x Video Microscope (w/ Slide) - EU
DE2503-EU
Domaille OptiSpec® Bench Fiber Microscope. 200x, 425x, and 875x approximate video magnifications with 5x, 10x and 20x objectives. Includes ME-12307 high resolution CCD CCIR/PAL/SECAM camera, linear slide to accept up to 4 connector types. Requires adapter and monitor sold separately. (Other camera options available)
The Domaille Engineering OptiSpec® DE2503 video microscope is designed for large and small fiber optic cable assembly companies. The DE2503 accommodates bare fiber inspection as well as all of the standard connectors including the entire MT series of multi-fiber connectors. Blue LED illumination control eliminates previous industry standard light source issues and improves contrast on minor scratches. Includes ME-12307 high resolution CCD CCIR/PAL/SECAM camera.
Features
Features
- New OptiSpec® blue LED Illumination
- High-resolution video
- Quadruple turret nosepiece which allows for a quick change of magnification
- Total video magnification 200x, 425x, & 875x (1720X Optional)
- Long working distance optics for UPC and APC inspection
- Receptacles for UPC, APC & multi-fiber connectors
- Available with optional non-contact Interferometer Lens
- Monitor and adapter not included
