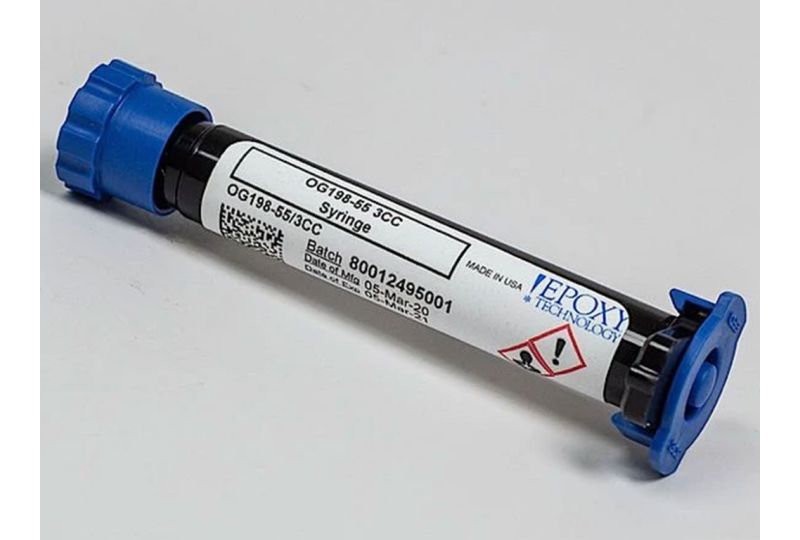

EPO-TEK® OG198-55 Electrically and Thermally Insulating Epoxy, UV & Heat Cure (3cc Syringe)
OG198-55-3CC
EPO-TEK® OG198-55 Electrically and Thermally Insulating Epoxy, UV & Heat Cure, 3cc Automatic Cartridge.
FOC SHELF LIFE GUARANTEE: MINIMUM 3 MONTH AT TIME OF SHIPPING
REFRIGERATED STORAGE REQUIRED
*Dry ice not required when customer application IS NOT viscosity sensitive*
*PO must state if Dry Ice Fee is to be Waived*
*See Drop Ship Pricing for quantities 100+*
FOC SHELF LIFE GUARANTEE: MINIMUM 3 MONTH AT TIME OF SHIPPING
REFRIGERATED STORAGE REQUIRED
*Dry ice not required when customer application IS NOT viscosity sensitive*
*PO must state if Dry Ice Fee is to be Waived*
*See Drop Ship Pricing for quantities 100+*
The EPO-TEK® OG198-55 Shadow Curable UV Epoxy is a high viscosity, single-component, electrically and thermally insulating, translucent UV-cure epoxy. It is the more thixotropic version of EPO-TEK OG198-54. Available in a 3cc automatic epoxy syringe. REFRIGERATED STORAGE REQUIRED
See Datasheet for additional properties and application notes
Features:
- High-Tg, translucent UV-cure epoxy
- Electrically and thermally insulating
- Strong transmission above 560 nm
- Shadow-curable formulation supports UV cure with enhanced performance after a thermal post-cure, enabling significant cure propagation into shadowed areas
Applications:
- Active alignment of optics
- Bonding fibers to V-grooves
- Fiber pigtails
- Medical devices
- Alignment in optoelectronic hybrids: Semiconductor devices
- Semiconductor devices
- General bonding, including structural adhesive in commercial LED lighting
Physical Properties:
- Consistency: Smooth thixotropic paste
- Viscosity (23°C) @ 100 rpm: 1,200-2,000 cPs
- Thixotropic Index: 6.0
- Glass Transition Temperature, Tg: ≥ 120°C (degree Celsius); ≥ 248°F (degree Fahrenheit)
- Shore D Hardness: 85
- Coefficient of Thermal Expansion (CTE):
- Below Tg: 72 x 10-6 in/in°C
- Above Tg: 120 x 10-6 in/in°C
- Suggested Operating Temperature: < 300 °C (Intermittent); < 572°F
- Particle Size: ≤ 20 microns
Optical Properties @ 23°C (73.4°F):
- Spectral Transmission: ≥ 97% @ 560-1,680nm
- Refractive Index (uncured): 1.5023 @ 589nm
- Refractive Index (cured): 1.5196 @ 589nm
See Datasheet for additional properties and application notes
Datasheet
SDS (Syringe)
Technical Support
A purchase from Fiber Optic Center includes access to a team of experienced technical experts with hands-on industry experience. From on-site support and training to troubleshooting, process development, yield improvement, evaluations, and calibrations, we provide the practical guidance and expertise needed to help you maximize productivity and achieve exceptional results. Click here for more details on the technical advantage of Fiber Optic Center.
