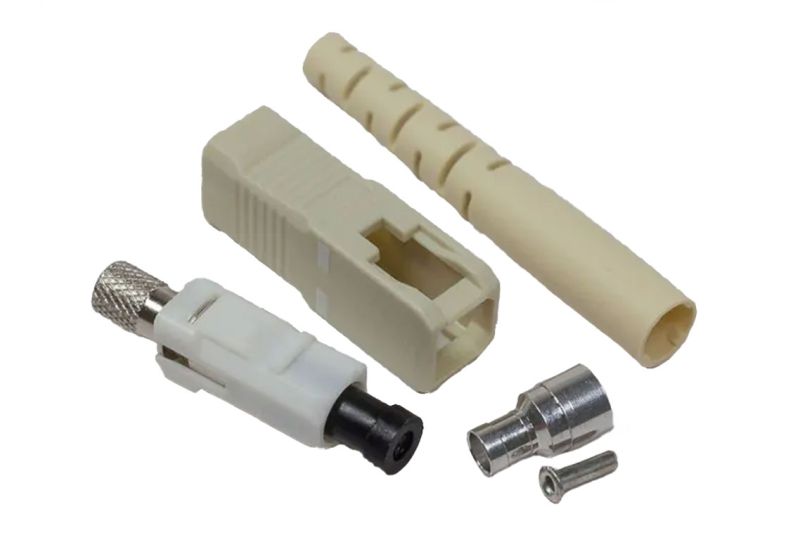

FiberSource SC Connector, Multimode, 127µm (micron) Ceramic Ferrule, 3mm Beige Boot

FiberSource SC connectors meet or exceed industry standards, offering reliable performance for fiber optic networks. The SC fiber connector features a square design, a zirconia ferrule and a push-pull latching mechanism for quick, secure connections. This design enables fast, tool-free connections while supporting higher panel density compared to twist-and-screw connectors like ST, improving network reliability and data transmission speed.

Features:

• FOCIS-3 Compliant
• Meet Telcordia, EIA / TIA, IEC, and JIS C5973 Specifications
• Durable glass-filled composite resin housing
• Meets UL94-V0 flammability requirements
• RoHS compliant

Specifications:

• Ferrule Type: Ceramic (zirconia) ferrule
• Ferrule ID Diameter: 127µm (micron)
• Fiber Type: Multimode
• Connector Housing Color: Beige
• Boot Color: Beige
• Boot Size: 3.0mm
• Insertion Loss: < 0.4dB
• Temperature Stability: <0.3dB; -40°C to 80°C (-40°F to 176°F)
