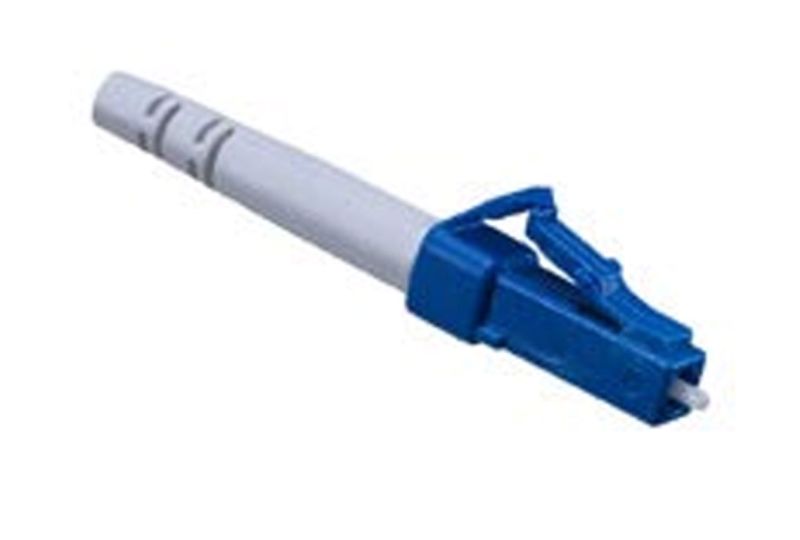

FiberSource LC Connector, Singlemode, 125.5µm (micron) Ceramic Ferrule, 2mm Boot

FS01124

FiberSource Single Mode LC Simplex Connector, Blue polymer body, Ceramic Pre-Radius Ferrule, 125.5um Nominal Hole Size, 1.6/2.0mm Blue Boot

The FiberSource LC connector are small form factor(SFF) interconnects based on the RJ-45 telephone interface, designed for high-density and legacy applications. Compatible with 1.6/2.0mm and 3.0mm cables, they offer precision performance with PC or angled zirconia ceramic ferrules (1.25mm OD) for fast polishing and optimal insertion and return loss.

Features:

Singlemode 125.5µm Zirconia Ferrule
Standards Compliance: IEC 61754-20 (LC Type), FOCIS 10a Compliant, Telcordia GR-326-CORE, TIA/EIA, Meets UL94-VO Flammability Requirements
Insertion Loss: ≤ 0.25dB
Return Loss: > 55dB
Operational Temperature: -40°C to +85°C (-40°F to 185°F)
Temperature Stability: ≤ 0.3dB; -40°C to +85°C (-40°F to 185°F)
Mating Durability: ≤ 0.2dB over 500 cycles
Housing Color: Blue
For 1.6/2.0mm Cable
2mm Boot
Over-Molded Dust Cap
Made in the USA
