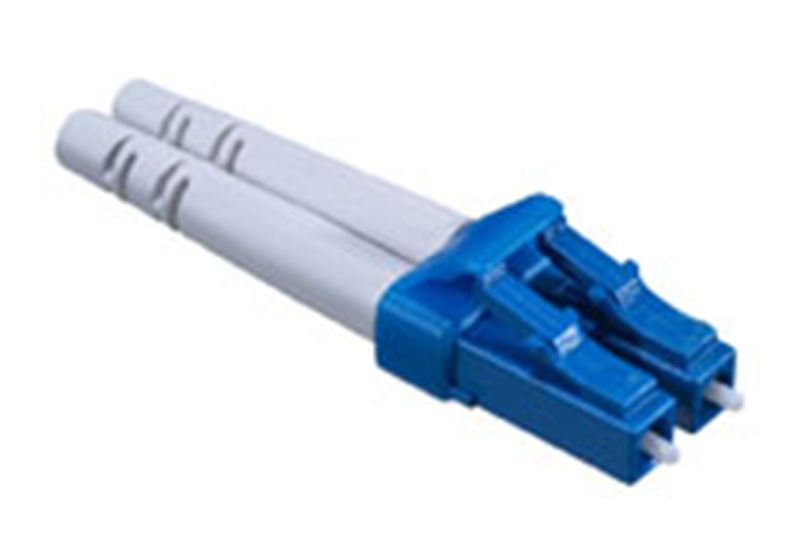

FiberSource LC Duplex Connector, Singlemode, 125.5µm (micron) Ceramic Ferrule, 2mm White Boot
FS01128
FiberSource Single mode LC Duplex Connector, Blue Polymer Body, Ceramic Pre-Radius Ferrule 125.5um Nominal Hole Size, 2.0mm Strain Relief Boot and Removable Blue Duplex Clip.
The FiberSource LC Duplex connector are small form factor(SFF) interconnects based on the RJ-45 telephone interface, designed for high-density and legacy applications. Compatible with 1.6/2.0mm and 3.0mm cables, they offer precision performance with PC or angled zirconia ceramic ferrules (1.25mm OD) for fast polishing and optimal insertion and return loss.
Features:
Features:
- Singlemode 125.5µm Zirconia Ferrule
- Standards Compliance: IEC 61754-20 (LC Type), FOCIS 10a Compliant, Telcordia GR-326-CORE, TIA/EIA, Meets UL94-VO Flammability Requirements
- Insertion Loss: ≤ 0.25dB (singlemode)
- Return Loss: >55dB (singlemode)
- Operational Temperature: -40°C to +85°C (-40°F to 185°F)
- Temperature Stability: ≤ 0.3dB; -40°C to +85°C (-40°F to 185°F)
- Mating Durability: ≤ 0.2dB over 500 cycles
- Housing Color: Blue
- Boot Color: White
- Removable Duplex Clip
- For 1.6/2.0mm Cable
- 2mm Boot
- Over-Molded Dust Cap
- Made in the USA
