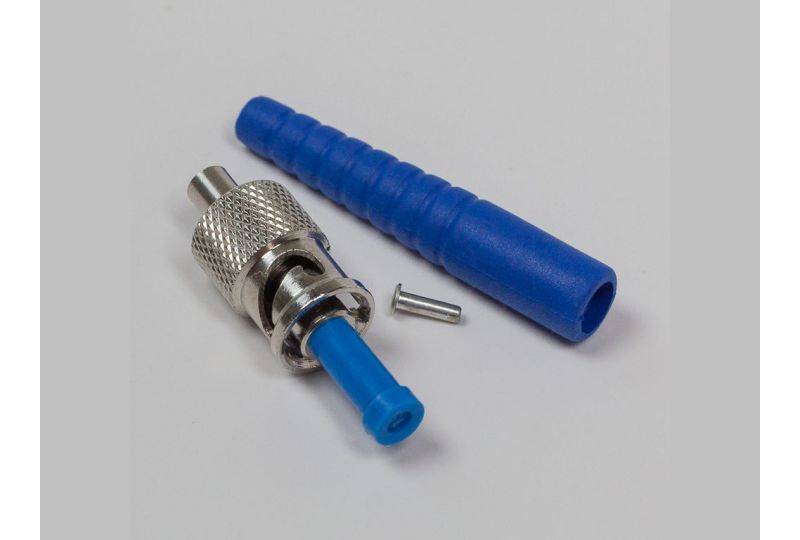

FiberSource ST® II Connector, Singlemode, 125.5µm (micron) Ceramic Ferrule, 3mm Blue Boot

FiberSource ST^® II fiber optic connectors are designed for precision, durability, and ease of use. Each ST connector features a ceramic ferrule and spring-loaded mechanism, secured by a bayonet-style coupling for quick, reliable optical connections. Ideal for both singlemode and multimode fiber, these ST connectors support high-performance in both short- and long-distance applications.

Manufactured to meet or exceed industry standards, FiberSource ST® connectors comply with Telcordia, EIA/TIA, and IEC specifications. When installed using our recommended termination procedures and ST® adapters, they are expected to meet the environmental requirements of Telcordia GR-326.

Features:

• Precision-machined, nickel-plated brass body and coupling nut
• Supports PC, Super PC, and Ultra PC applications
• Available for singlemode fiber
• Pre-radiused zirconia or stainless steel ferrules
• Bayonet-style ST® II coupling for fast, secure connections
• Foldback-style crimp design for easy, consistent termination
• RoHS compliant

Specifications:

• Ferrule Hole Size: 125.5µm (micron)
• Ferrule Type: Ceramic (Zirconia) Ferrule
• Boot Size: 3mm
• Boot Color: Blue
• Insertion Loss: Return Loss: >65dB
• Durability: 1000 Matings
• Tensile Strength: > 20 lbf
• Flexure: >100 Cycles
• Operational Temperature: -40° C to 80° C (-40°F to 176°F)
