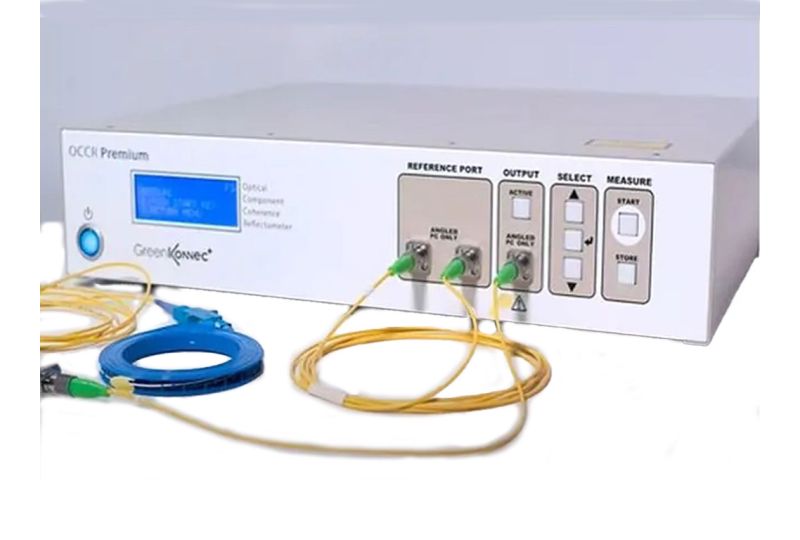

GreenKonnec+ Premium 1310nm Optical Component Coherence Reflectometer (OCCR) for Single Mode Fiber Connectors

The GreenKonnec+ Premium 1310nm Optical Component Coherence Reflectometer (OCCR) precisely detects micro cracks in single-mode fiber connectors and components, defects that standard insertion loss (IL) and return loss (RL) tests can miss. By identifying hidden fiber damage early, this advanced fiber optic inspection tool helps prevent long-term performance degradation caused by thermal expansion and contraction.

Engineered for ultra-high sensitivity, the GreenKonnec+ optical reflectometer delivers world-class detection from 10 to 100 dB return loss with 0.001 mm position resolution. The unit provides a quick 3-second measurement cycle and a clear PASS/FAIL judgment for reliable quality control.

Features:

• Detects hidden fiber micro cracks before performance failure
• Ultra-high detection accuracy (10–100 dB return loss)
• Micro crack position resolution: 0.001 mm
• Fast measurement time: 3 seconds
• Distance measurement range: up to 100 mm
• Pass/Fail judgment and memory storage for results and waveforms
• Includes one master cord (specified at order), software, and protective Pelican™ case
• Compatible with FC, SC, MU, and LC connectors
• PC not included

Premium Specifications:

• Wavelength: 1310 nm
• Distance Measurement Range: 0–100 mm
• Reflection Measurement Range: 14–100 dB
• Optical Fiber Type: 10/125 µm single-mode
• Measurement Time: ~3 seconds
• Dimensions: 431 × 89 × 350 mm (16.97 × 3.50 × 13.78 in.)
• Weight: Approx. 6 kg (13.2 lb)
