Jetting VO Fiber Blowing Machine
V0-CAN
Jetting V0 for 0,5-6 mm Cable with US air connection
Incl 1pc rubber wheel, 2 pc metal wheel. 1 x bottle micro duct lube and a service kit. Excl. charger & batteries
Incl 1pc rubber wheel, 2 pc metal wheel. 1 x bottle micro duct lube and a service kit. Excl. charger & batteries

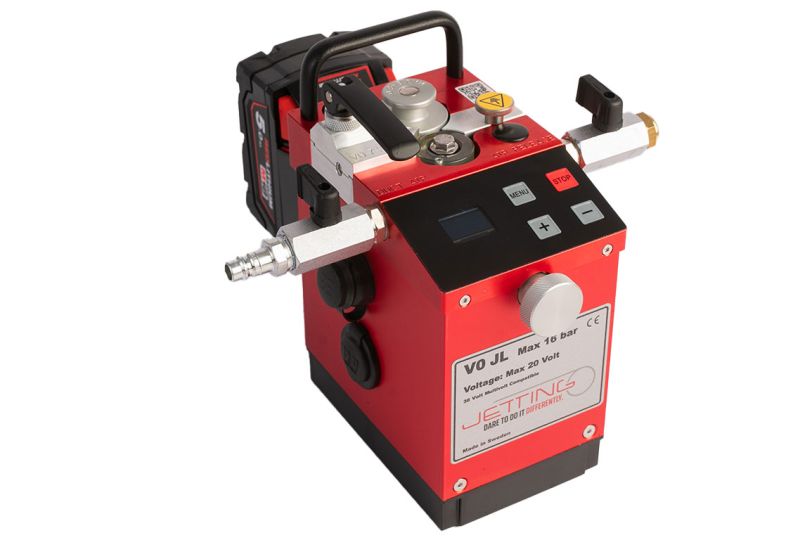

The Jetting VO Fiber Blowing Machine is a compact, electrically operated tool used for blowing fiber optic cable at FTTX installations. Designed to handle blown fiber (EPFU) and micro/nano cables ranging from 0.8 to 6 mm (0.03 – 0.24 inches), it accommodates ducts sized 3 to 16 mm (0.12 – 0.63 inches) with ease. Featuring an advanced digital control system with soft-start functionality and electronic fiber protection, this machine ensures safe and reliable operation, making it suitable for both professionals and newcomers.
Capable of speeds up to 250 m/min (820 ft/min), the Jetting VO Fiber Blower offers real-time performance monitoring through a digital display that provides information on speed, distance, cable force, and air pressure. Memory functions retain user-defined settings, such as pushing force, even after power cycles or battery replacements. The fiber-blowing machine can be operated directly from its transport case for added convenience, enhancing portability and efficiency.
Other Features
Capable of speeds up to 250 m/min (820 ft/min), the Jetting VO Fiber Blower offers real-time performance monitoring through a digital display that provides information on speed, distance, cable force, and air pressure. Memory functions retain user-defined settings, such as pushing force, even after power cycles or battery replacements. The fiber-blowing machine can be operated directly from its transport case for added convenience, enhancing portability and efficiency.
Other Features
- Battery connection with optional power supply for flexibility.
- Electronic stopping/slipping protection activates within 250 ms.
- Adjustable clamping force for various cable types.
- Retains key settings for consistent performance.
- Duct air release valve for rapid air reduction, plus air temperature display for real-time monitoring.
- Battery: 18 V, 5 Ah Milwaukee connector
- Max pressure: 16 Bar (232 psi)
- Pushing force: Up to 60 N (13.5 lbs)
- Weight (with transport case): Approx. 13 kg (28.7 lbs)
- Air connection: Standard 3/8” Cejn
- Dimensions (transport case): 600 x 500 x 300 mm (23.6 x 19.7 x 11.8 inches)
